Запчасти Case IH 8576 (02-004) - DRIVE LINE AND SHIELDS ASSEMBLY, S.N. CFH0113001 THRU CFH0163232 Driveline

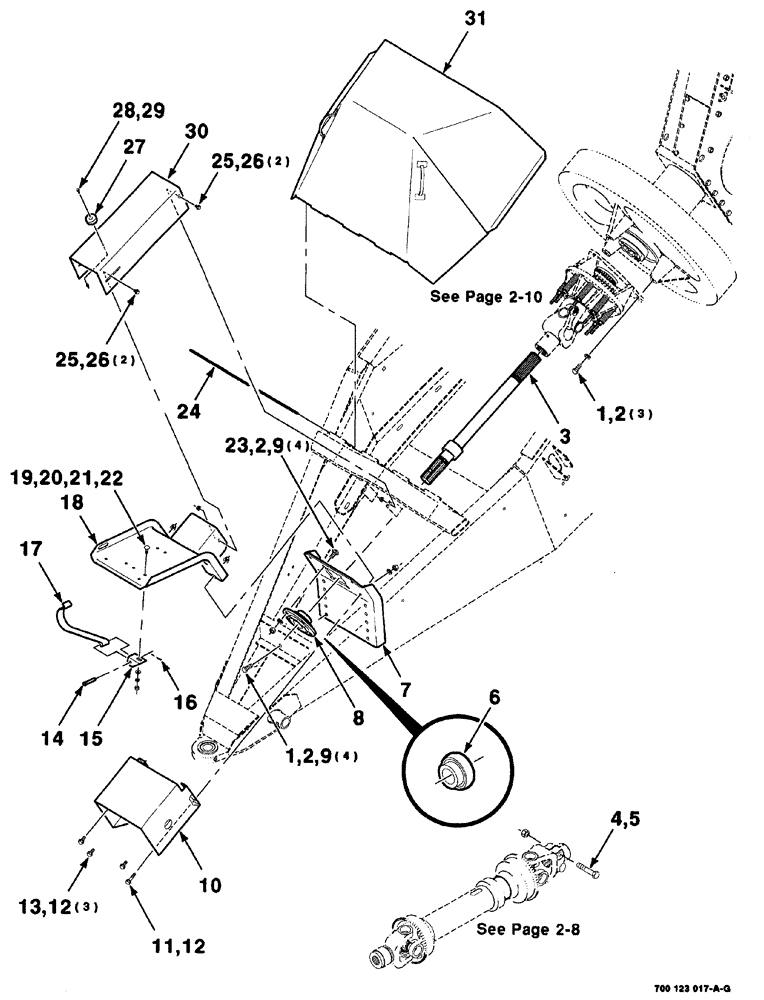

Схема запчастей Case IH 8576 - (02-004) - DRIVE LINE AND SHIELDS ASSEMBLY, S.N. CFH0113001 THRU CFH0163232 Driveline
26
16
26
12
11
22
2
25
5
13
18
3
1
9
2
14
27
10
15
8
19
20
21
17
30
4
2
7
9
6
31
1
28
12
29
25
24
23

Артикул

Название

Примечание

Количество

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

11шт.

3

700123820

SHAFT

1шт.

4

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

ZP&O

1шт.

6

51318

BEARING

spherical

1шт.

7

700113022

SUPPORT

1шт.

8

700124004

BEARING ASSY,44.45 mm ID x 85 mm OD x 29 mm

BEARING ASSEMBLY, Includes: Ref. 6

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

8шт.

10

700123829

SHIELD

1шт.

11

700711134

SCREW

3/8-16 x 1-3/4 HFS GR8

1шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

14

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

PIN clevis, 3/8 x 2

1шт.

15

700150655

CHANNEL

SUPPORT

1шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

700123831

SUPPORT

STRAP

1шт.

18

700150657

SUPPORT

WA

1шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

1шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

24

65250

PIN,4.76mm OD x 571.5mm L

hinge

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

27

700708648

BUMPER

1шт.

28

700707203

CAPTIVE WASHER SCREW

#12-24 x 3/4 HWHMS

1шт.

29

1954816C1

LOCK NUT

special #12-24 HCLN

1шт.

30

700123839

SHIELD

PTO

1шт.

31

700123840

SHIELD

WA

1шт.

Выбрано товаров: 31
