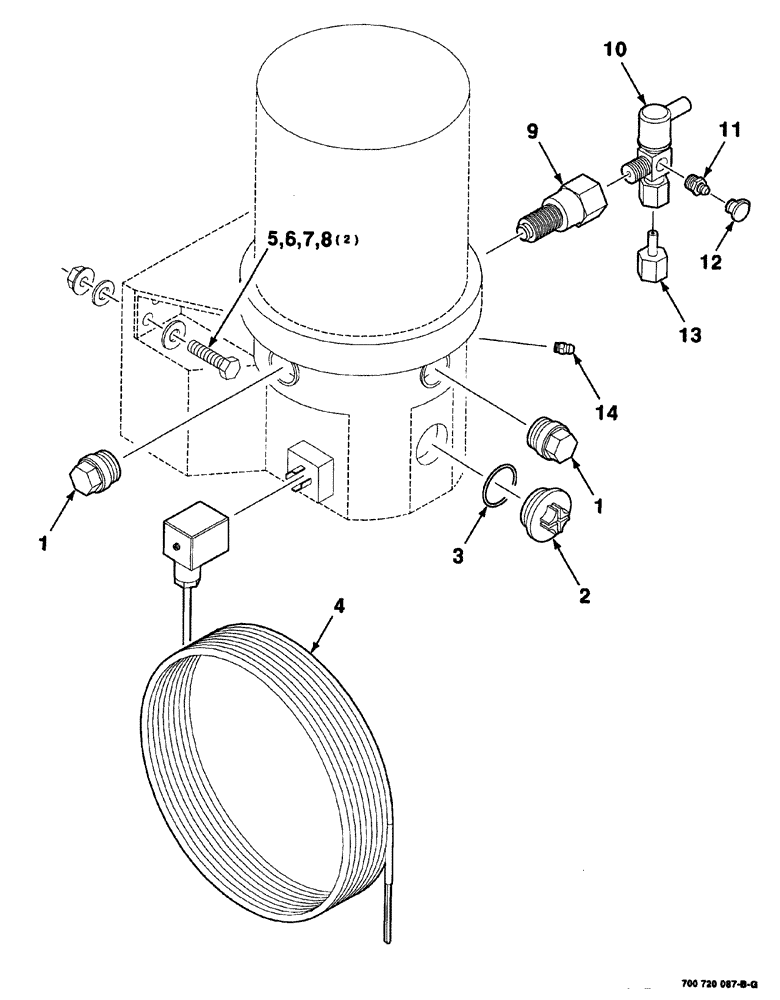

Запчасти Case IH 8576 (09-052) - AUTO LUBE PUMP ASSEMBLY, 700720087 AUTO LUBE PUMP ASSEMBLY COMPLETE Decals & Attachments

1

700720104

PLUG

closure

2шт.

2

700720105

PLUG

sealing

1шт.

3

700720106

O-RING

O

1шт.

4

700720103

WIRE HARNESS

CORD electrical

1шт.

5

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4 FTC

2шт.

6

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

700720108

HYD CONNECTOR

element

1шт.

10

700720099

VALVE PRESSURE RELIE

ASSEMBLY, pressure relief

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

12

700720101

DUST CAP

grease

1шт.

13

700720100

ADAPTER

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.
