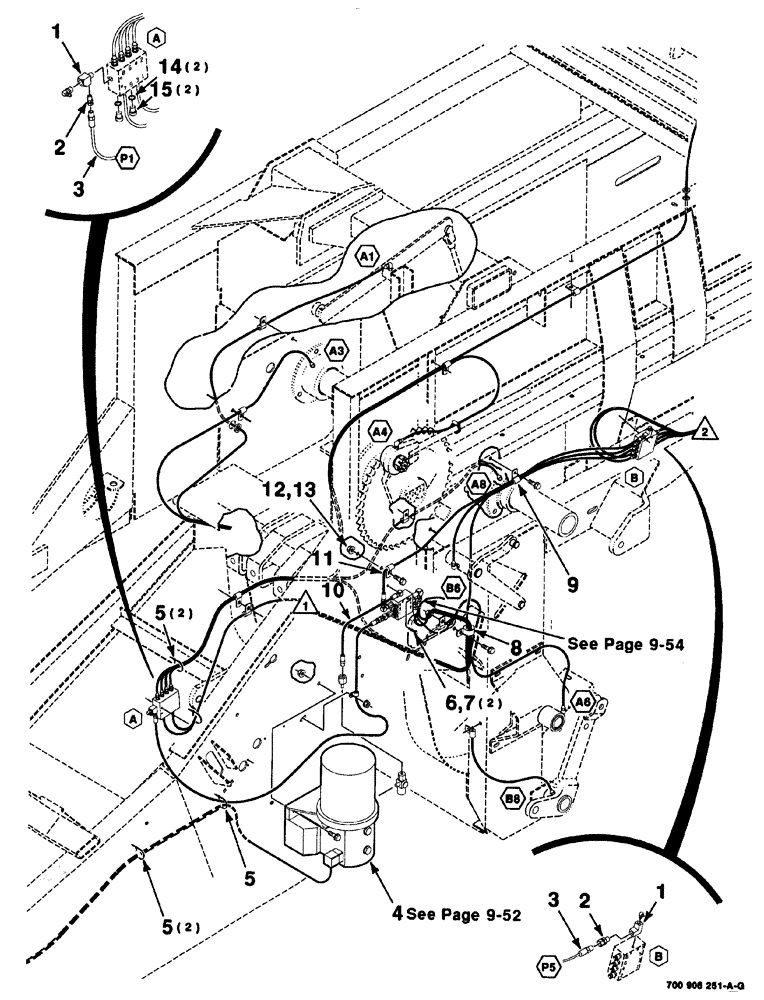

Запчасти Case IH 8576 (09-048) - AUTO LUBE KIT, HK41021 COMPLETE, INCLUDES PGS 9-48 THRU 9-55 TO BE ORDERED THRU WHOLEGOODS ONLY Decals & Attachments

1

700720092

3 WAY CONNECTION

2шт.

2

700720091

HYD CONNECTOR

swivel

2шт.

3

700718190

HOSE

value

2шт.

4

700720087

LUBE PUMP

ASSEMBLY, auto lube

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

5шт.

6

7701444

SCREW

10-32 x 1 3/4 HWHMS GR 120 M

2шт.

7

225-14210

NUT,#10-32

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

10

700718186

HOSE

PUMP, lube

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

1шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

GR 120 M

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

14

700706839

GASKET,10.31mm ID x 13.82mm OD x 0.84mm Thk

2шт.

15

700706841

PLUG

2шт.
