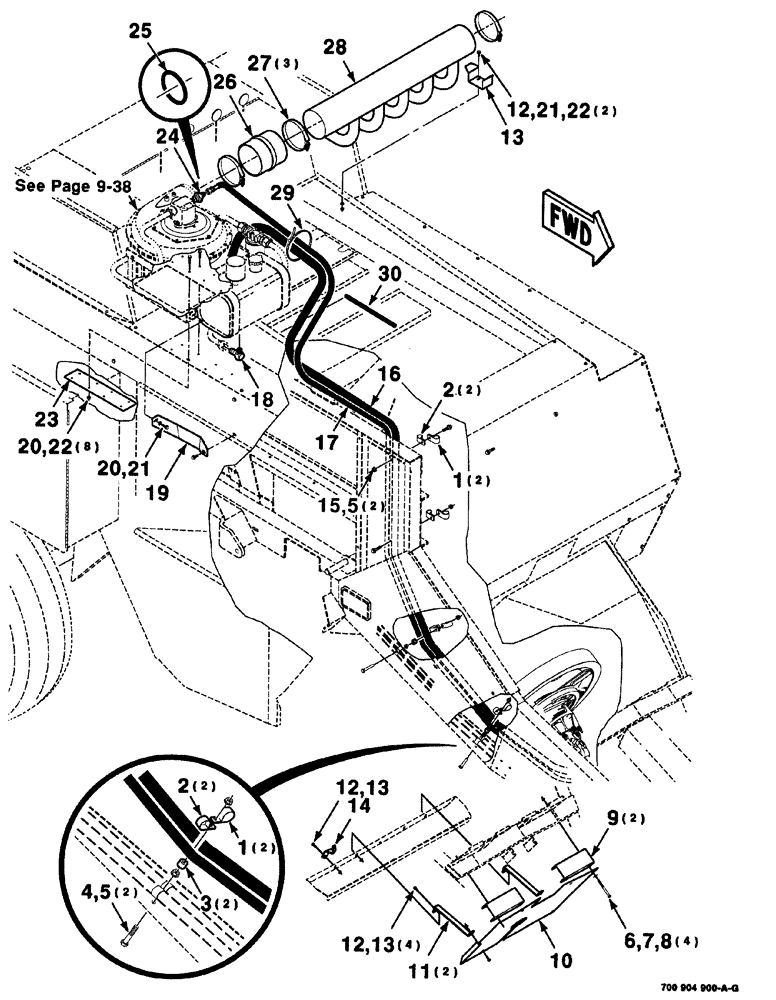

Запчасти Case IH 8576 (09-032) - KNOTTER BLOWER KIT, HK40953 COMPLETE, INCLUDES PGS 9-32 THRU 9-43 TO BE ORDERED THRU WHOLEGOODS ONLY Decals & Attachments

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

4шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

4шт.

3

6553804

SPACER

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

6

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 x 3-3/4 C

4шт.

7

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

700133097

SUPPORT

SHIELD

2шт.

10

700150595

SHIELD

flywheel

1шт.

11

700150596

STRAP

SUPPORT, SHIELD

2шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

13

700150591

CHANNEL

mounting

6шт.

14

700150597

STRAP

CABLE, support

1шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

16

700717865

HOSE

hydraulic

1шт.

17

700718207

HOSE

hydraulic

1шт.

18

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 Deg., hydraulic

1шт.

19

700150589

SUPPORT

blower

1шт.

20

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

9шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

22

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

23

700149723

STRAP

support

1шт.

24

700701753

HYD CONNECTOR

hydraulic, Includes: Ref. 25

1шт.

25

738484

O-RING

1шт.

26

700717760

ADAPTER

rubber

1шт.

27

700717761

CLAMP

T bolt

3шт.

28

700149743

MANIFOLD

WA

1шт.

29

7721798

CABLE

TIE nylon

1шт.

30

700105144

GROMMET

TRIM

1шт.
