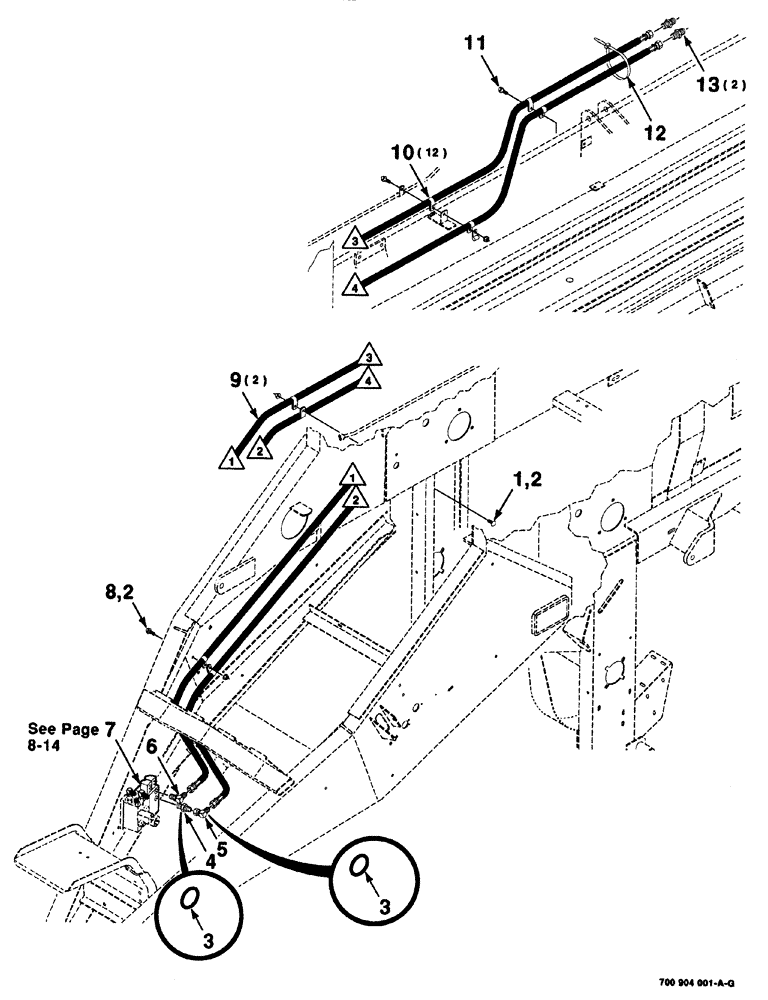

Запчасти Case IH 8576 (09-030) - HYDRA. CONTROL VALVE KIT, HK40899 COMPLETE-TO BE ORDERED THRU WHOLEGOODS ONLY Decals & Attachments

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight thread

1шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Incl. Ref. 3

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 3

1шт.

7

700706395

VALVE PRESSURE RELIE

ASSEMBLY, accumulator

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

9

1714708

HOOK

hydraulic

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

12шт.

11

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

12

7721798

CABLE

TIE nylon

1шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

union 370 JIC

2шт.
