(09-016) - BALE CHUTE KIT, HK42501 BALE CHUTE KIT COMPLETE, TO BE ORDERED THRU WHOLE GOODS ONLY

Запчасти Case IH 8576 (09-016) - BALE CHUTE KIT, HK42501 BALE CHUTE KIT COMPLETE, TO BE ORDERED THRU WHOLE GOODS ONLY Decals & Attachments

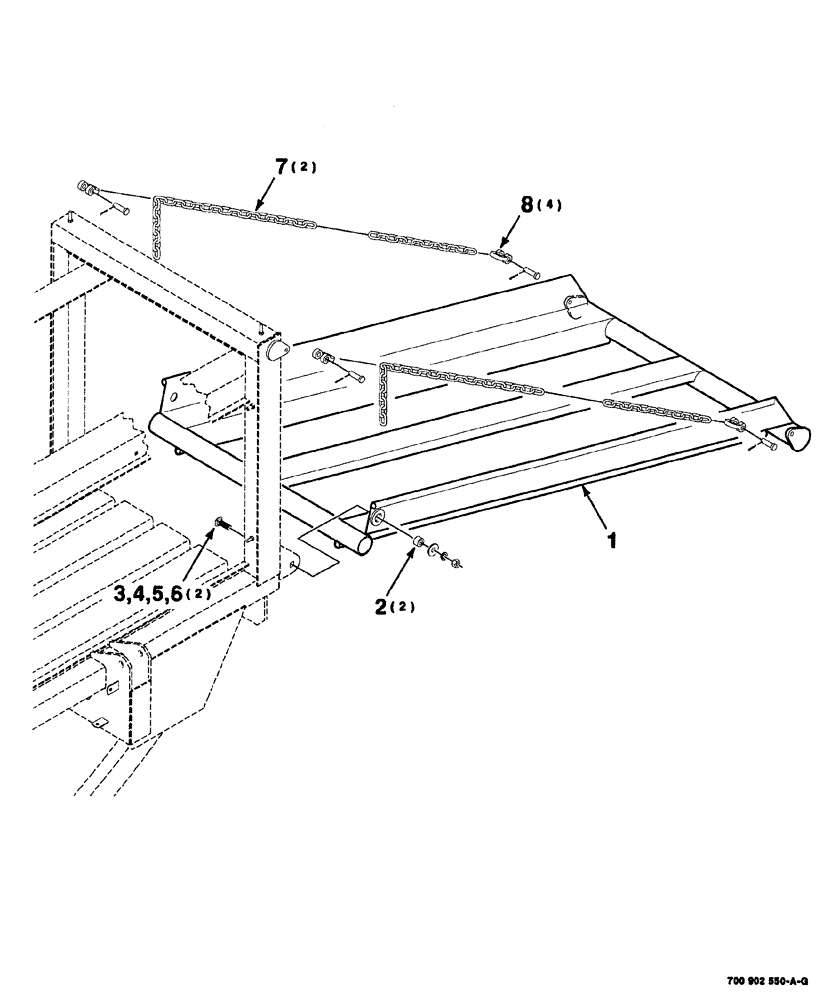

Схема запчастей Case IH 8576 - (09-016) - BALE CHUTE KIT, HK42501 BALE CHUTE KIT COMPLETE, TO BE ORDERED THRU WHOLE GOODS ONLY Decals & Attachments
5
6
7
8
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700123475

CHUTE (DOWNWARD)

WA, frame

1шт.

2

6529705

BUSHING

2шт.

3

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 RHSNB

2шт.

4

495-21069

WASHER,5/8"

wide plain, 5/8

2шт.

5

492-11062

BEARING WASHER,5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

700123484

CHAIN (AG)

2шт.

8

766113

CLEVIS

(Includes Pins)

4шт.

Выбрано товаров: 8
