(05-026) - SLOT CLEANER ASSEMBLY, S.N. CFH0117524 AND LATER

Запчасти Case IH 8576 (05-026) - SLOT CLEANER ASSEMBLY, S.N. CFH0117524 AND LATER (16) - BALE EJECTOR

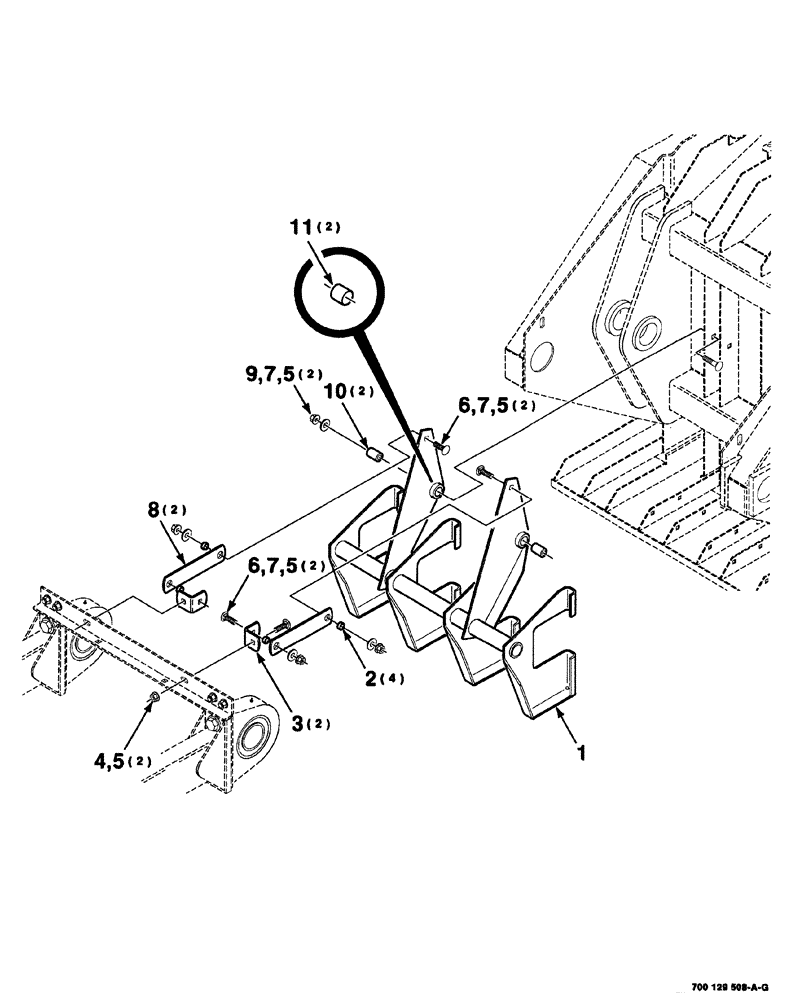

Схема запчастей Case IH 8576 - (05-026) - SLOT CLEANER ASSEMBLY, S.N. CFH0117524 AND LATER (16) - BALE EJECTOR
4
7
5
10
2
7
6
1
5
7
9
5
5
11
3
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700129422

CLEANER

WA, Includes: Ref. 11

1шт.

2

6232946

BUSHING

4шт.

3

700122588

ANGLE

ANGLE

2шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

7

495-21044

WASHER,3/8"

6шт.

8

700129431

STRAP

2шт.

9

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 x 1-3/4 RHSNB

2шт.

10

6518302

SPACER

BUSHING

2шт.

11

740787

BRONZE BUSHING

2шт.
