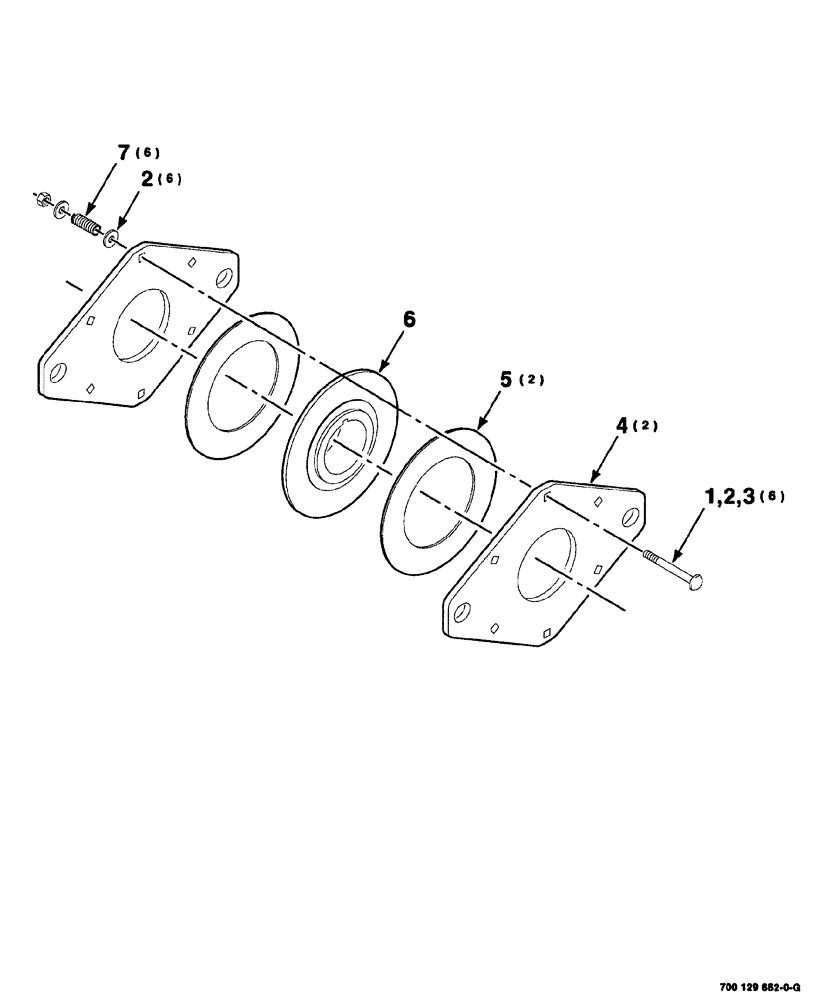

Запчасти Case IH 8576 (05-008) - STUFFER CLUTCH ASSEMBLY (16) - BALE EJECTOR

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 RHSNB

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

12шт.

3

231-1406

LOCK NUT,3/8"-16, GB

6шт.

4

6578868

LARGE PLATE

PLATE, LARGE 1/4-28 x 45 Deg. ZERK

2шт.

5

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

CLUTCH

2шт.

6

700129663

HUB

WA

1шт.

7

758011

SPRING

compression

6шт.
