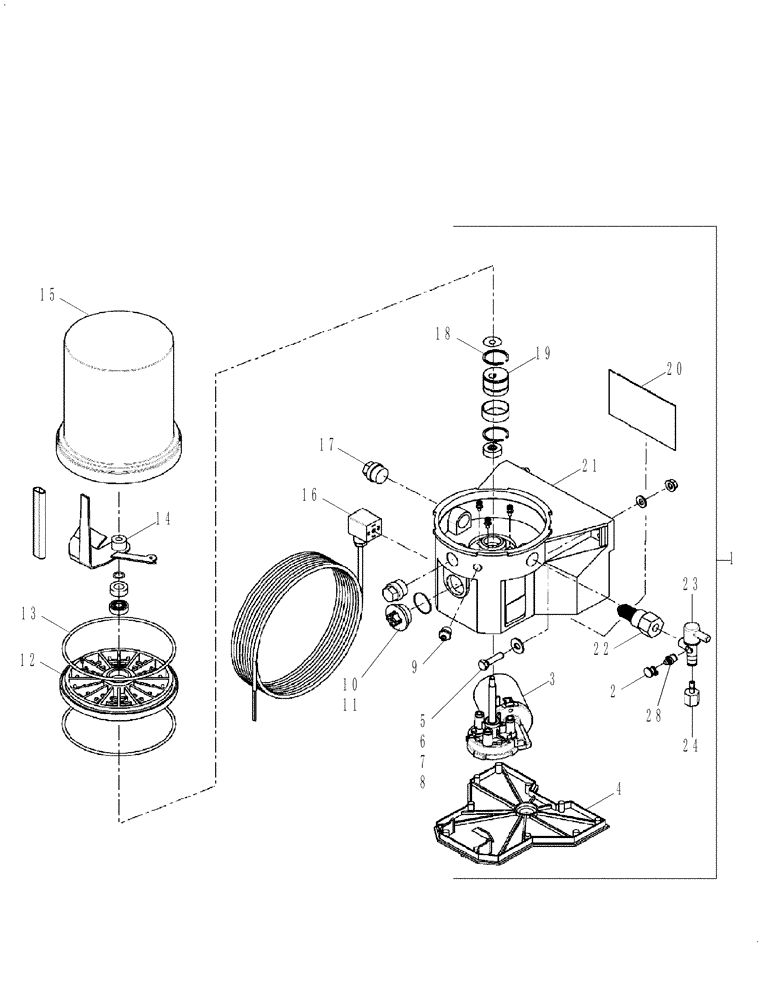

Запчасти Case IH 8576 (06-054) - AUTO LUBE PUMP ASSEMBLY, 700720087 AUTO LUBE PUMP ASSEMBLY COMPLETE (14) - BALE CHAMBER

1

700720087

LUBE PUMP

Assembly, Inc. 2-28

1шт.

2

700720101

DUST CAP

Lube Pump

1шт.

3

700724608

ELECTRIC MOTOR

Lube Pump

1шт.

4

700724618

COVER

Lube Pump

1шт.

5

700705617

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

Lube Pump

2шт.

6

700709602

WASHER,5/16"

Lube Pump

2шт.

7

705525

WASHER

Lube Pump

2шт.

8

704239

FRONT AXLE

Lube Pump

2шт.

9

700724621

HYD CONNECTOR

Lube Pump

1шт.

10

700720105

PLUG

Lube Pump

1шт.

11

700720106

O-RING

Lube Pump

1шт.

12

700724603

PLASTIC PLATE

Lube Pump

1шт.

13

700724602

O-RING

Lube Pump

2шт.

14

700724606

PADDLE

Lube Pump

1шт.

15

700724605

PROTECTION CAP

Lube Pump

1шт.

16

700720103

WIRE HARNESS

Lube Pump

1шт.

17

700720104

PLUG

Lube Pump

2шт.

18

700724607

SEAL KIT

Lube Pump

1шт.

19

700724619

CAM

Lube Pump

1шт.

20

700724601

PRINTED CIRCUIT BOAR

Lube Pump

1шт.

21

700724620

HOUSING

Lube Pump

1шт.

22

700720108

HYD CONNECTOR

Lube Pump

1шт.

23

700720099

VALVE PRESSURE RELIE

Lube Pump

1шт.

24

700720100

ADAPTER

Lube Pump

1шт.

25

700724610

FUSE

8-amp, (Not Shown)

1шт.

26

700724611

FUSE BOX

8-amp, (Not Shown)

1шт.

27

700724612

KIT

(Not Shown)

1шт.

28

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.
