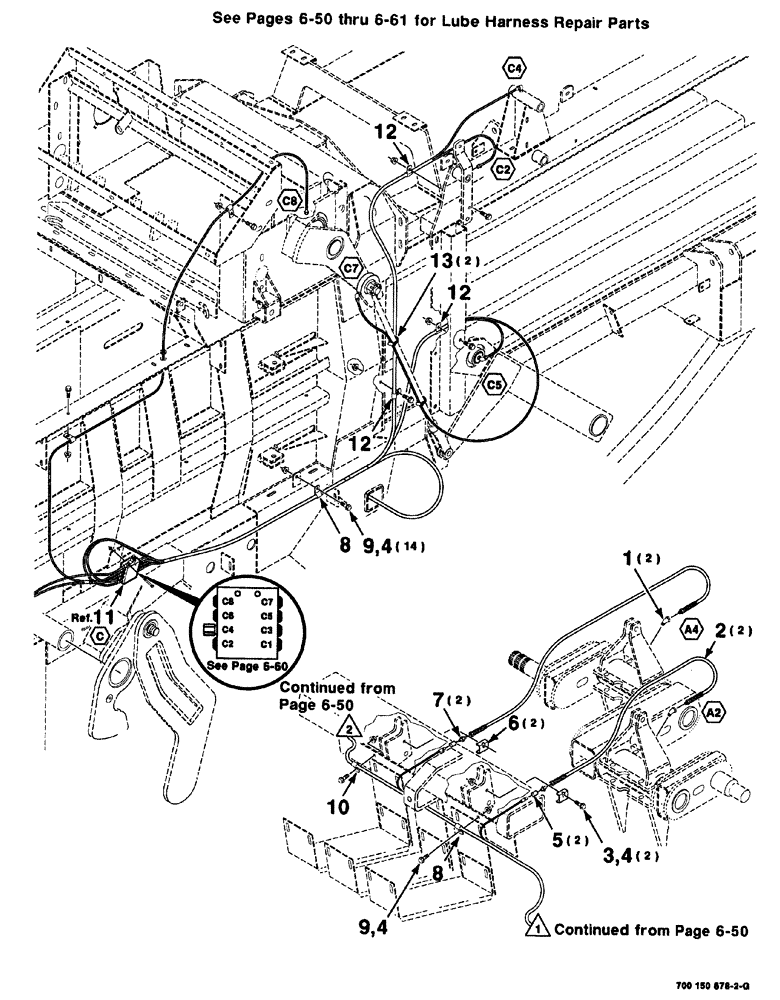

Запчасти Case IH 8576 (06-052) - AUTO LUBE ASSEMBLY - CONTINUED (14) - BALE CHAMBER

1

219-81

ELBOW,45 Degree, 1/8"-27

STREET ELL, 1/8-27 x 45 Deg.

2шт.

2

700706798

FLEXIBLE HOSE

2шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

17шт.

5

221-326

COUPLING,Pipe, 1/8" NPT

PIPE

2шт.

6

700113671

CLAMP

2шт.

7

86513589

HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT

male, JIC NPTF

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

15шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

11

700718185

HARNESS

VALVE, rear

1шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

3шт.

13

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

3шт.
