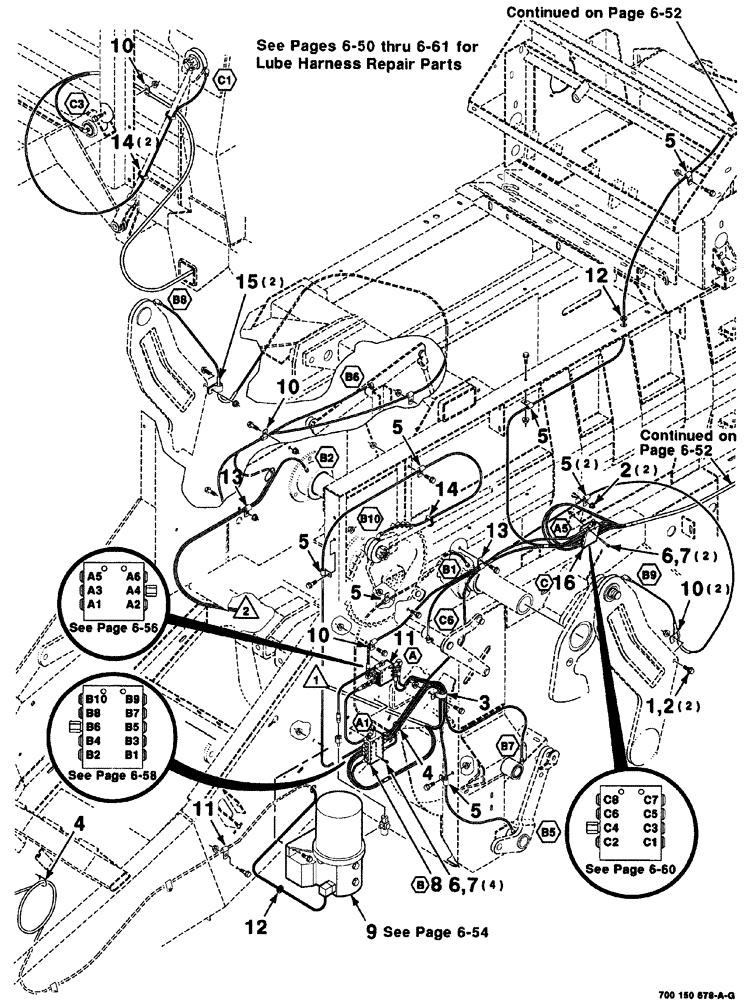

Запчасти Case IH 8576 (06-050) - AUTO LUBE ASSEMBLY, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

4шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

2шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

8шт.

6

7701444

SCREW

10-32 x 1-3/4 HWHMS

6шт.

7

225-14210

NUT,#10-32

6шт.

8

700718184

HARNESS

VALVE, front

1шт.

9

700720087

LUBE PUMP

LUBE

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

5шт.

11

700718183

HARNESS

VALVE primary

1шт.

12

36548

GROMMET

2шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

15

700720109

HOSE,6.35 mm ID x 150.00 mm, SAE 30R1 or 30R2

2шт.

16

700718185

HARNESS

VALVE, rear

1шт.
