(06-046) - LUBE HARNESS AND VALVE ASSEMBLY-FRONT, S.N. CFH0113001 THRU CFH0163128

Запчасти Case IH 8576 (06-046) - LUBE HARNESS AND VALVE ASSEMBLY-FRONT, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER

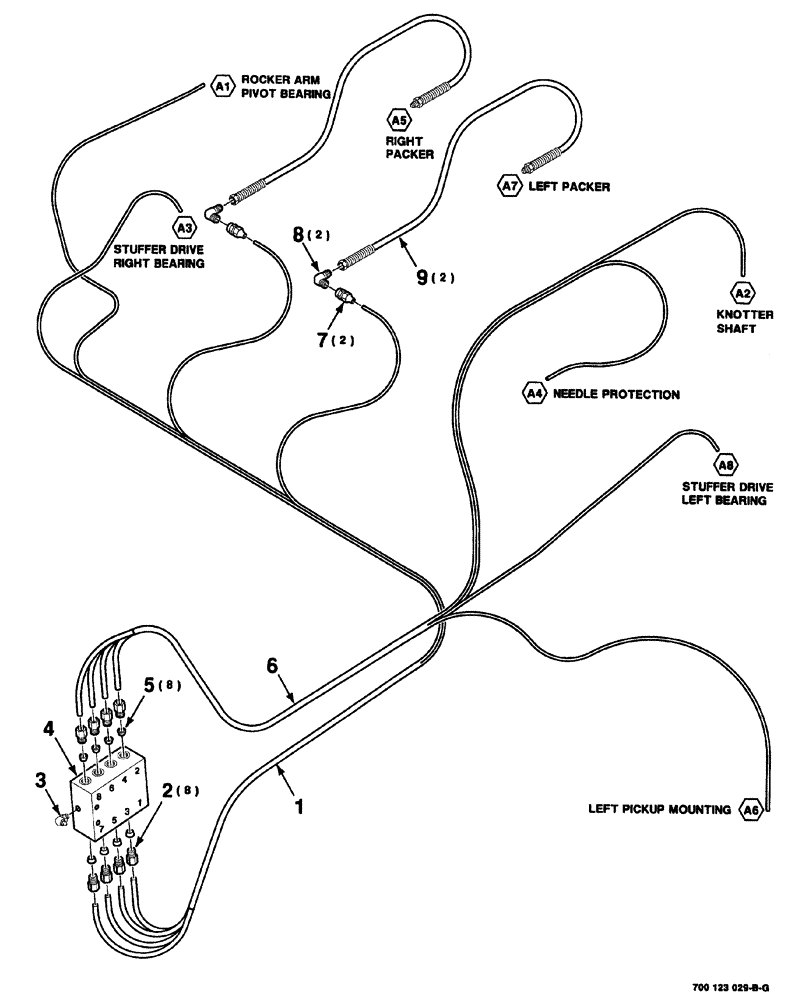

Схема запчастей Case IH 8576 - (06-046) - LUBE HARNESS AND VALVE ASSEMBLY-FRONT, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER
2
7
9
1
5
8
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700123987

HARNESS

LUBE, front

1шт.

2

700706684

HYD CONNECTOR

compression

8шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

4

700706837

MANIFOLD

BLOCK LUBE

1шт.

5

700706678

FERRULE

8шт.

6

700123988

HARNESS

LUBE, left

1шт.

7

700706840

HYD CONNECTOR

female

2шт.

8

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

male, 90 Deg.

2шт.

9

700706798

FLEXIBLE HOSE

2шт.
