Запчасти Case IH 8576 (06-044) - LUBE ASSEMBLY-CENTRALIZED, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER

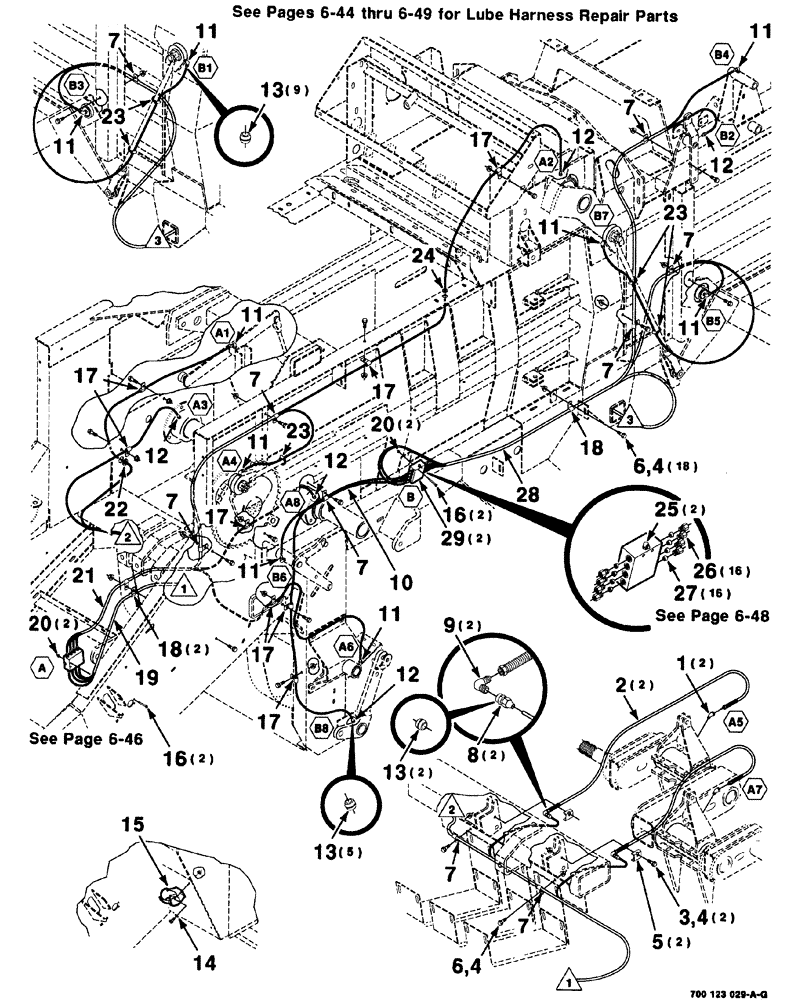

Схема запчастей Case IH 8576 - (06-044) - LUBE ASSEMBLY-CENTRALIZED, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER
6
11
5
16
10
7
11
25
11
1
17
14
18
22
13
3
11
12
29
11
13
11
27
11
4
26
7
11
12
23
13
23
18
24
4
19
17
23
12
21
7
7
12
9
7
17
7
17
20
2
4
15
12
6
7
20
7
17
17
16
28
7
8
11

Артикул

Название

Примечание

Количество

1

219-81

ELBOW,45 Degree, 1/8"-27

STREET ELL, 1/8-27 x 45 Deg.

2шт.

2

700706798

FLEXIBLE HOSE

ASSEMBLY

2шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

21шт.

5

700113671

CLAMP

LINE

2шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

19шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

9шт.

8

700706840

HYD CONNECTOR

female

2шт.

9

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

male, 90 Deg.

2шт.

10

700123990

HARNESS

LUBE, pickup

1шт.

11

700706682

FRONT AXLE

ELBOW, 1/8-27 x 90 Deg.

9шт.

12

219-300

ROD, CONNECTING

male

5шт.

13

30774V

FERRULE

BALL

16шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

15

700707011

HOLDER

GUN, grease

1шт.

16

7701444

SCREW

#10-32 x 1-3/4 HWHMS

4шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

8шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

19

700123987

HARNESS

LUBE, front

1шт.

20

225-14210

NUT,#10-32

4шт.

21

700123988

HARNESS

LUBE, left

1шт.

22

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

23

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

5шт.

24

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

26

700706684

HYD CONNECTOR

compression

16шт.

27

700706678

FERRULE

16шт.

28

700123989

HARNESS

HARNESS LUBE, rear

1шт.

29

700706837

MANIFOLD

BLOCK LUBE

2шт.

Выбрано товаров: 29
