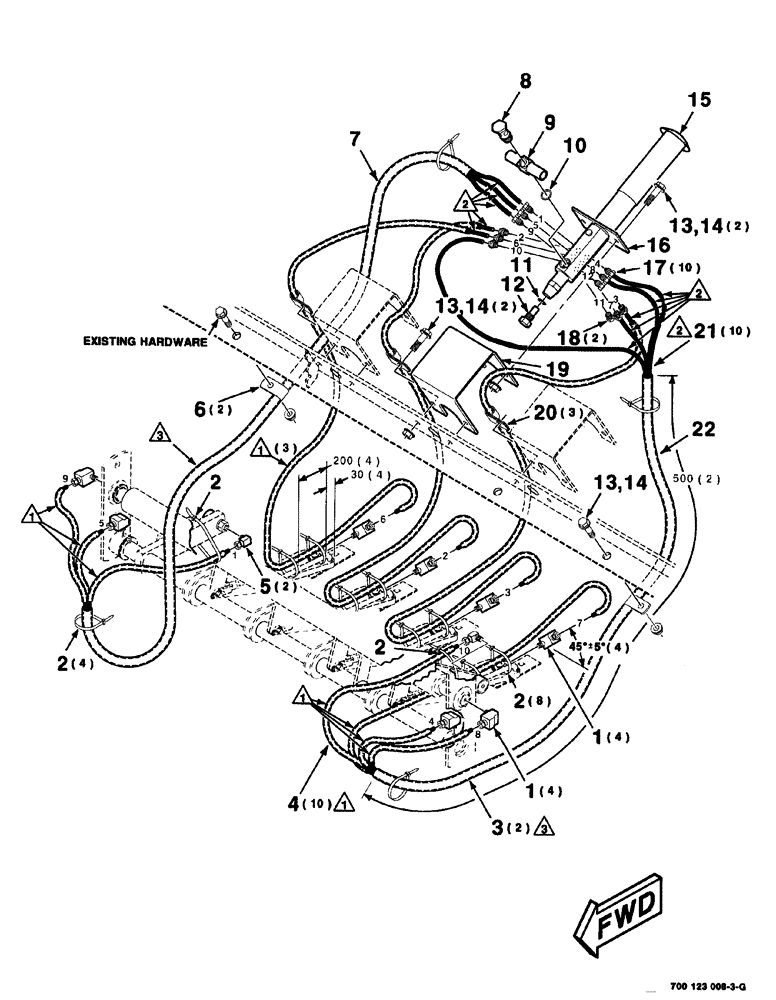

Запчасти Case IH 8576 (06-040) - LUBE PUMP AND LINE ASSEMBLY-TWINE FINGERS (14) - BALE CHAMBER

1

51200288

ELBOW

male, Includes: Ref. 17

8шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

14шт.

3

700123362

FLEXIBLE SHEATH

protective 1/2, 10 Foot

2шт.

4

700113360

FLEXIBLE SHEATH

protective 1/4, 10 Foot

10шт.

5

700706279

COUPLING, QUICK, FEM

snap on

2шт.

6

700711751

CLAMP

2шт.

7

700123462

HARNESS

right side

1шт.

8

700706543

3 WAY CONNECTION

stud

1шт.

9

700706542

3 WAY CONNECTION

nipple

1шт.

10

700706541

COPPER WASHER

TEE

1шт.

11

700706540

COPPER WASHER

PLUG

1шт.

12

700710976

PLUG

stop

1шт.

13

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

5шт.

14

1703354

NUT

1/4-20 HFTLN GR/G

5шт.

15

700706276

SMALL PUMP

MULTI LUBER

1шт.

16

700113361

SUPPORT

PUMP support

1шт.

17

700706277

TUBE NUT

compression, 1/4-28

10шт.

18

700710975

PLUG

1/4-28

2шт.

19

700113353

SUPPORT

1шт.

20

751321

CLAMP

3шт.

21

700113359

TUBE,0.125" OD, 3048 mm Length

nylon, 10 Foot

10шт.

22

700123461

WIRE HARNESS

left side

1шт.
