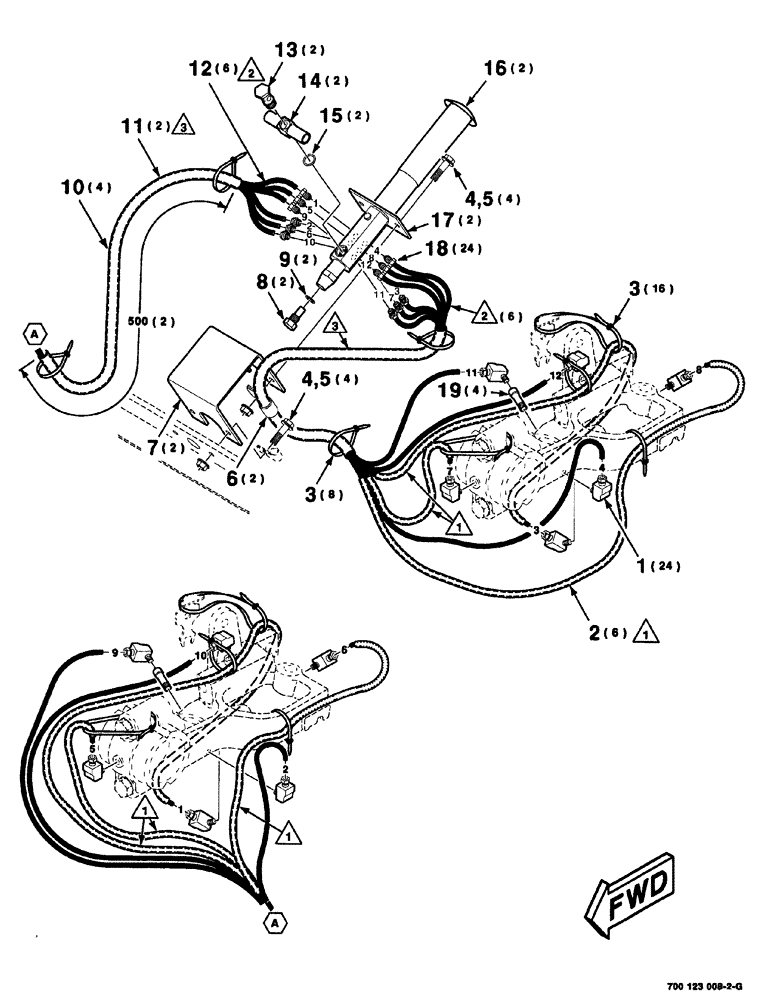

Запчасти Case IH 8576 (06-038) - LUBE PUMP AND LINE ASSEMBLY-KNOTTER (14) - BALE CHAMBER

1

51200288

ELBOW

male, Includes: Ref. 18

24шт.

2

700113360

FLEXIBLE SHEATH

protective 1/4, 10 Foot

6шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

24шт.

4

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

8шт.

5

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

6

700711751

CLAMP

2шт.

7

700113353

SUPPORT

2шт.

8

700706539

PLUG

stop

2шт.

9

700706540

COPPER WASHER

PLUG

2шт.

10

700123460

WIRE HARNESS

knotter

4шт.

11

700123362

FLEXIBLE SHEATH

protective 1/2, 10.6 Foot

2шт.

12

700113359

TUBE,0.125" OD, 3048 mm Length

nylon, 10 Foot

6шт.

13

700706543

3 WAY CONNECTION

stud

2шт.

14

700706542

3 WAY CONNECTION

nipple

2шт.

15

700706541

COPPER WASHER

TEE

2шт.

16

700706276

SMALL PUMP

MULTI LUBER

2шт.

17

700113361

SUPPORT

PUMP support

2шт.

18

700706277

TUBE NUT

compression

24шт.

19

700706280

HYD CONNECTOR

ZERK

4шт.
