Запчасти Case IH 8576 (06-034) - KNOTTER BRAKE ASSEMBLY, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER

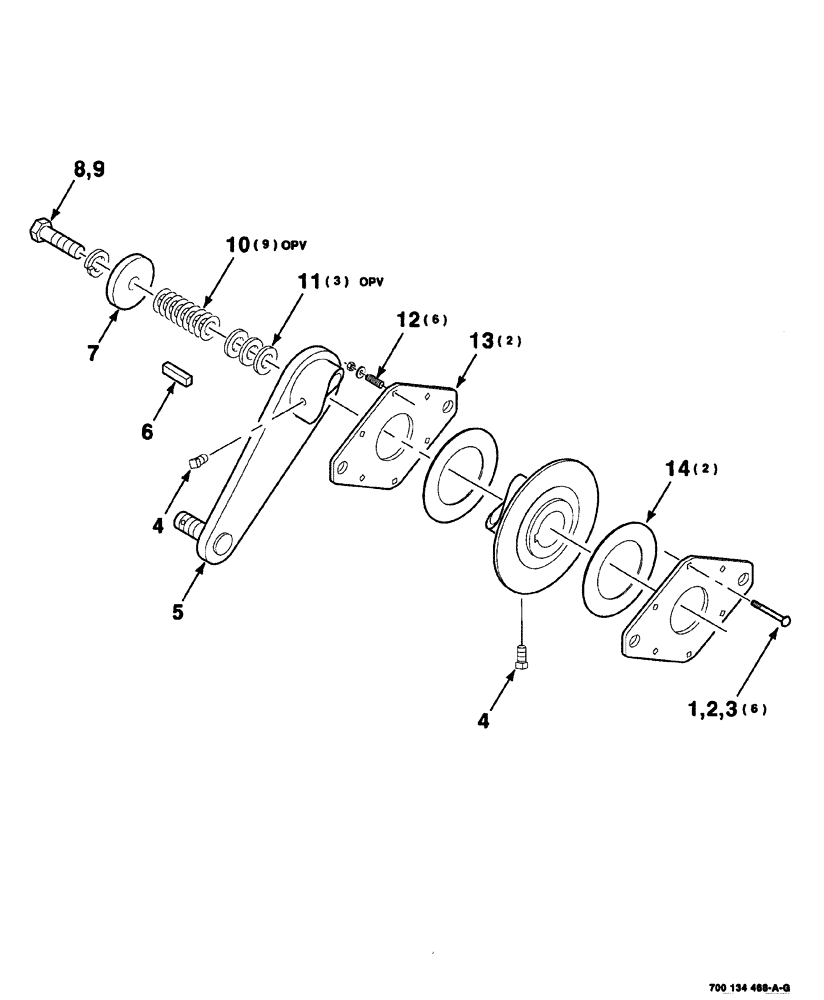

Схема запчастей Case IH 8576 - (06-034) - KNOTTER BRAKE ASSEMBLY, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER
1
5
13
7
12
11
9
8
10
3
6
2
4
14
4

Артикул

Название

Примечание

Количество

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 RHSNB

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

231-1406

LOCK NUT,3/8"-16, GB

6шт.

4

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

black, 1/2-13 x 1-1/4 CPSQHSS

2шт.

5

700134469

ARM

WA right

1шт.

6

61879

KEY

1/2 x 1/2 x 2-1/2

1шт.

7

6561351

CAP WASHER

1шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

1шт.

10

6553275

SHIM

countershaft

9шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

12

58644

SPRING

compression

6шт.

13

6578868

LARGE PLATE

PLATE, LARGE pressure

2шт.

14

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

CLUTCH

2шт.

Выбрано товаров: 14
