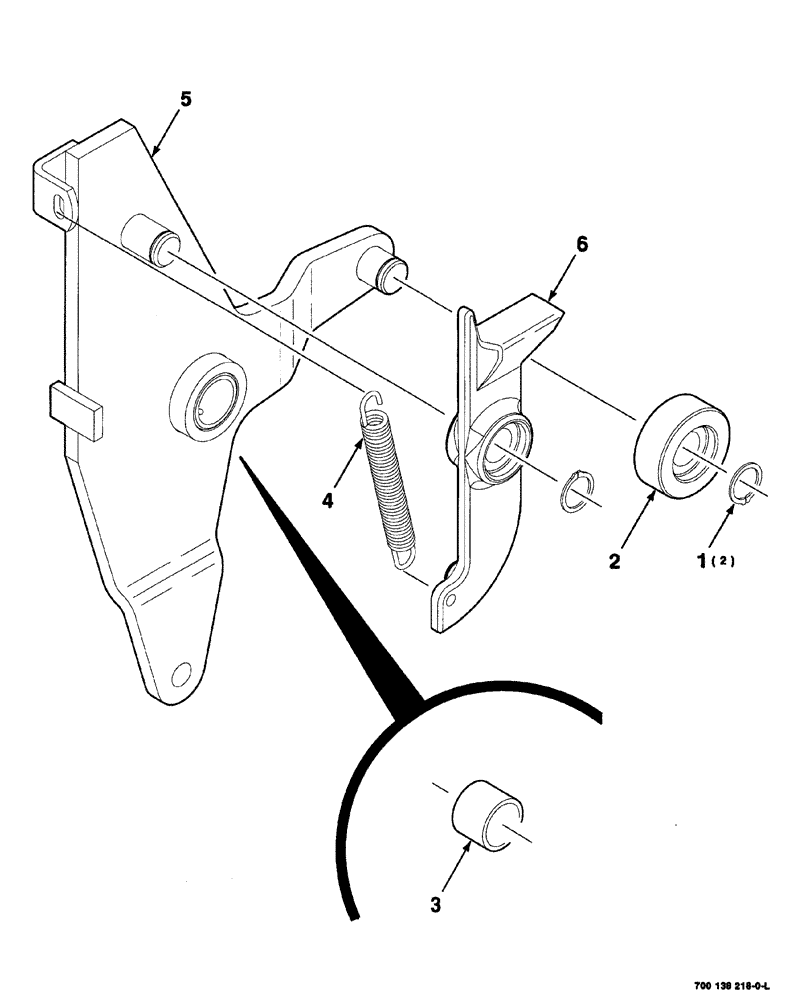

Запчасти Case IH 8576 (06-030) - RESET ARM ASSEMBLY, 700138218 RESET ARM ASSEMBLY COMPLETE (14) - BALE CHAMBER

1

100-1175

SNAP RING,#75, Ext

2шт.

2

700138225

ROLLER,50.8mm OD x 19mm L

CLUTCH

1шт.

3

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

NEEDLE

1шт.

4

700714166

SPRING

extension

1шт.

5

700138219

ARM

ASSEMBLY, Includes: Ref. 3

1шт.

6

700138224

ANVIL

CLUTCH, knotter

1шт.
