Запчасти Case IH 8576 (06-028) - KNOTTER TWINE FINGER AND HAY DOG ASSEMBLIES, S.N. CFH0163792 AND LATER (14) - BALE CHAMBER

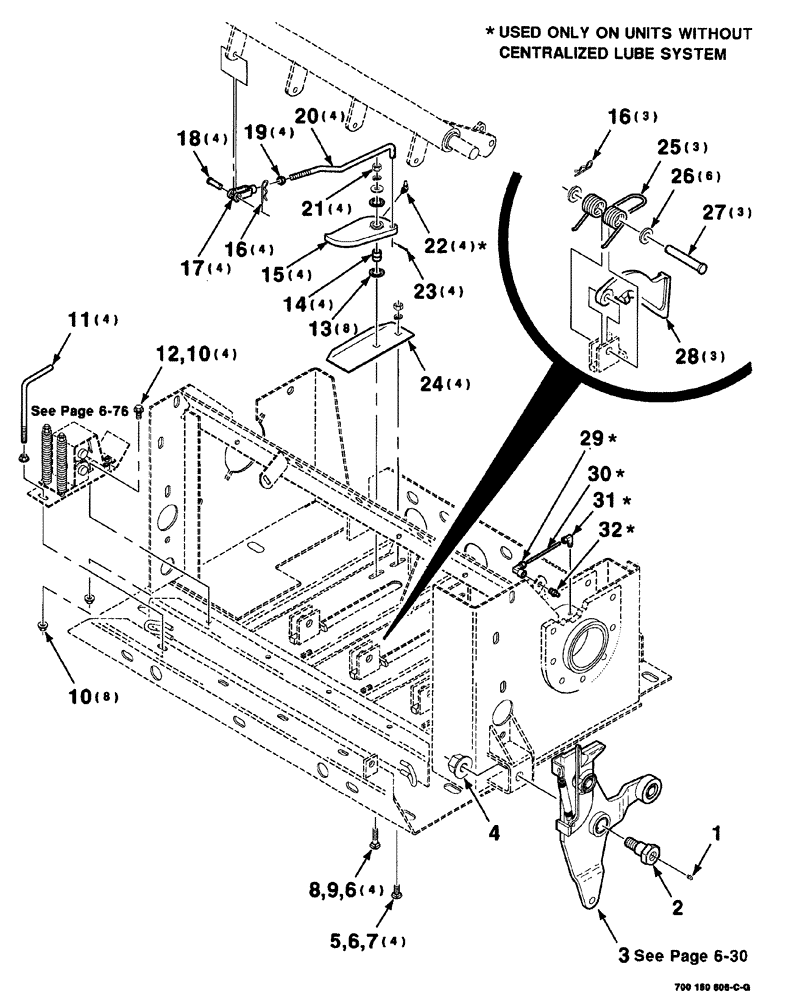

Схема запчастей Case IH 8576 - (06-028) - KNOTTER TWINE FINGER AND HAY DOG ASSEMBLIES, S.N. CFH0163792 AND LATER (14) - BALE CHAMBER
30
1
6
18
24
2
29
27
13
28
20
5
10
23
19
10
26
12
6
16
17
14
7
31
11
16
9
22
15
8
4
25
21
32
3

Артикул

Название

Примечание

Количество

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

2

700137492

BOLT

special, 3/4-10 x 2-1/4

1шт.

3

700138218

ARM

ARM ASSEMBLY

1шт.

4

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

1шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

4шт.

6

492-11038

LOCK WASHER,3/8"

8шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

4шт.

9

495-21044

WASHER,3/8"

4шт.

10

231-5146

FLANGE NUT,3/8"-16

12шт.

11

702400048

ROD

4шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

8044695

SEAL,15.37mm ID x 30.56mm OD x 1.96mm Thk

8шт.

14

700122681

BUSHING,10.34mm ID x 15.88mm OD x 19.18mm L

4шт.

15

700113345

FINGER

twine

4шт.

16

S120261

PIN

wire hair cotter, .149

7шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

4шт.

18

063586

CLEVIS PIN

3/8 x 1-1/8

4шт.

19

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

20

6523740

ROD

FINGER

4шт.

21

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

23

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

24

700122682

LARGE PLATE

PLATE, LARGE FINGER

4шт.

25

700706376

SPRING

torsion

3шт.

26

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

6шт.

27

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

clevis, 5/8 x 3-3/4

3шт.

28

700137655

DOG

HAY

3шт.

29

222-1676

ELBOW

compression, 90 Deg.

1шт.

30

6845929

LINE

grease

1шт.

31

222-2101

ELBOW,90 Degree, Flareless, 5/16"-24 x 1/8 NPT

ELBOW, 1/8 NPTF x 90 Deg.

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 32
