Запчасти Case IH 8576 (06-026) - KNOTTER TWINE FINGER AND HAY DOG ASSEMBLIES, S.N. CFH0117287 THRU CFH0163791 (14) - BALE CHAMBER

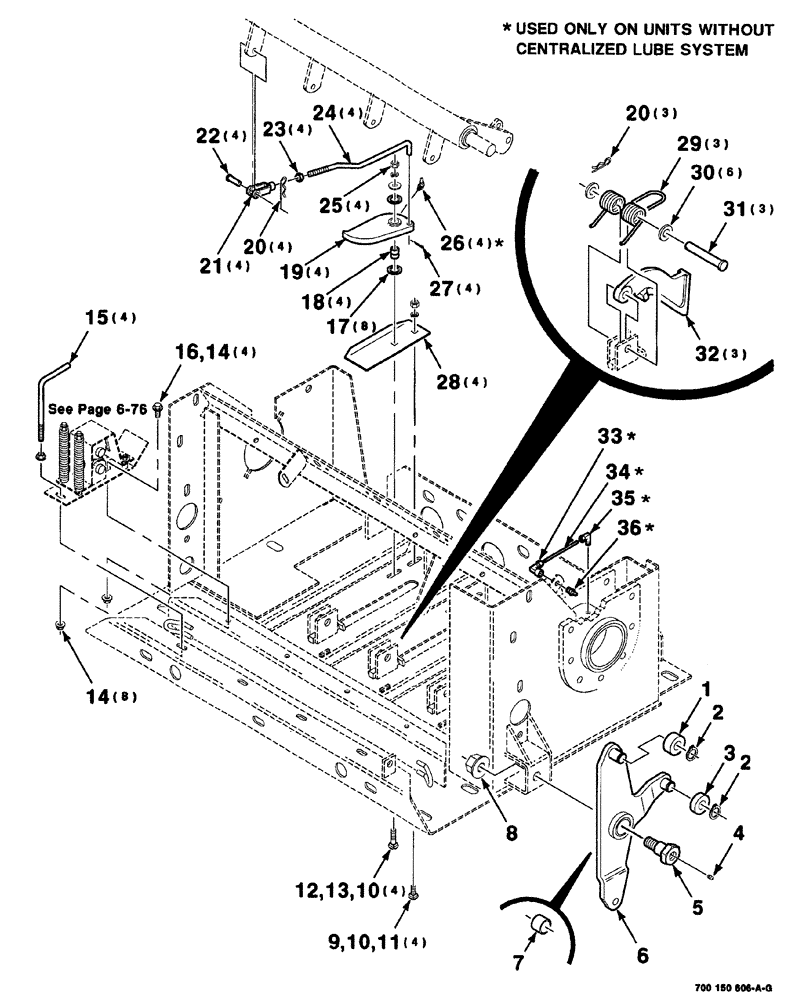

Схема запчастей Case IH 8576 - (06-026) - KNOTTER TWINE FINGER AND HAY DOG ASSEMBLIES, S.N. CFH0117287 THRU CFH0163791 (14) - BALE CHAMBER
9
2
28
4
10
35
31
8
27
30
14
12
3
20
14
2
17
36
24
5
10
1
7
34
11
20
22
19
26
13
25
32
18
15
16
29
23
6
21
33

Артикул

Название

Примечание

Количество

1

700124056

ROLLER

CLUTCH

1шт.

2

100-1175

SNAP RING,#75, Ext

2шт.

3

6525042

ROLLER,41.28mm OD x 12.5mm L

CLUTCH

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

700137492

BOLT

special, 3/4-10 x 2-1/4

1шт.

6

700137490

ARM

ASSEMBLY, Includes: Ref. 7

1шт.

7

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

needle

1шт.

8

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

1шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

4шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

4шт.

13

495-21044

WASHER,3/8"

4шт.

14

231-5146

FLANGE NUT,3/8"-16

12шт.

15

702400048

ROD

4шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

17

8044695

SEAL,15.37mm ID x 30.56mm OD x 1.96mm Thk

8шт.

18

700122681

BUSHING,10.34mm ID x 15.88mm OD x 19.18mm L

4шт.

19

700113345

FINGER

twine

4шт.

20

S120261

PIN

wire hair cotter, .149

7шт.

21

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

4шт.

22

063586

CLEVIS PIN

3/8 x 1-1/8

4шт.

23

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

24

6523740

ROD

FINGER

4шт.

25

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

26

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

27

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

28

700122682

LARGE PLATE

PLATE, LARGE FINGER

4шт.

29

700706376

SPRING

torsion

3шт.

30

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

6шт.

31

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

clevis, 5/8 x 3-3/4

3шт.

32

700137655

DOG

HAY

3шт.

33

222-1676

ELBOW

compression, 90 Deg.

1шт.

34

6845929

LINE

grease

1шт.

35

222-2101

ELBOW,90 Degree, Flareless, 5/16"-24 x 1/8 NPT

ELBOW, 1/8 NPTF x 90 Deg.

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 36
