Запчасти Case IH 8576 (06-022) - KNOTTER SERVICE KIT, 700150670 BOX OF PARTS COMPLETE, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER

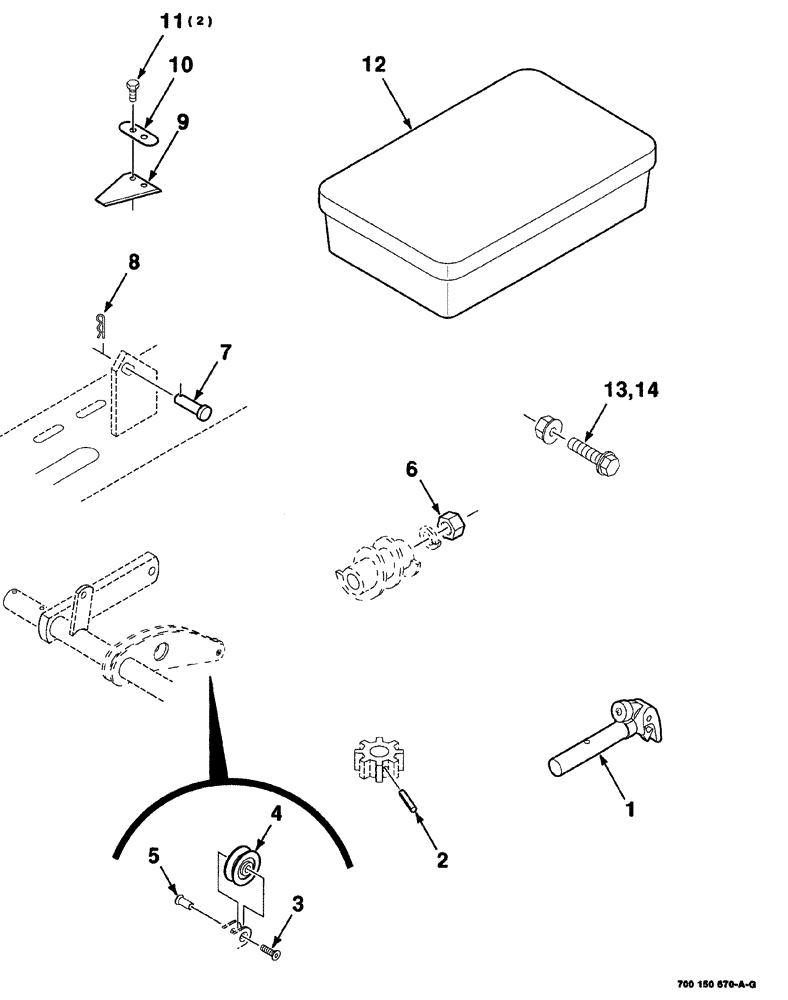

Схема запчастей Case IH 8576 - (06-022) - KNOTTER SERVICE KIT, 700150670 BOX OF PARTS COMPLETE, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER
7
3
5
13
8
14
4
11
1
2
12
6
10
9

Артикул

Название

Примечание

Количество

1

700700968

KNOTTER

BILL HOOK ASSEMBLY

1шт.

2

435-7614

GROOVED PIN,3/16" x 7/8", Type G

3/16" x 7/8", Type G

1шт.

3

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 x 1/2 HSFCHCS

1шт.

4

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

rolling

1шт.

5

866566

FASTENER,#10 - 32 x 9/16"

special, #10-32

1шт.

6

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

7

063586

CLEVIS PIN

3/8 x 1-1/8

1шт.

8

S120261

PIN

wire hair cotton, .149

1шт.

9

700718710

KNIFE

twine

1шт.

10

6613624

WASHER, LOCK

TAB

1шт.

11

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

12

700707474

BOX

PLASTIC

1шт.

13

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

1шт.

14

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

Выбрано товаров: 14
