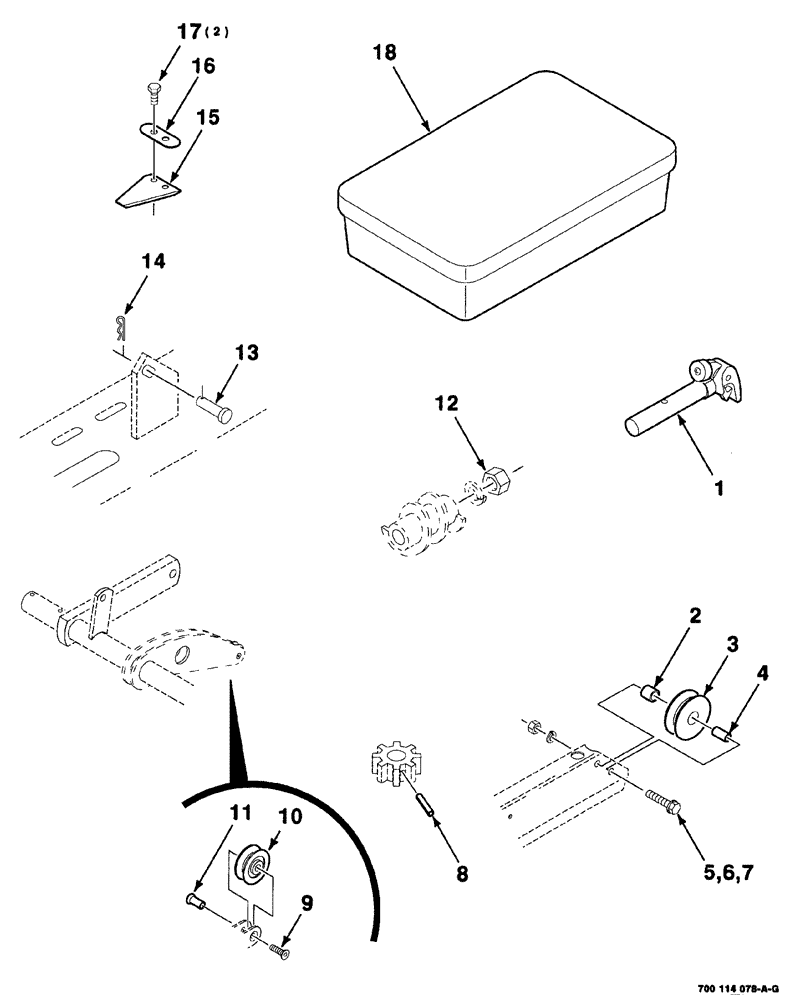

Запчасти Case IH 8576 (06-020) - KNOTTER SERVICE KIT, 700114078 KNOTTER SERVICE KIT COMPLETE, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER

1

700700968

KNOTTER

BILL HOOK ASSEMBLY

1шт.

2

7849656

SLEEVE

roller

1шт.

3

6529945

ROLLER

1шт.

4

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

bushing

1шт.

5

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

#10-24 x 1 HWHMS

1шт.

6

492-11010

LOCK WASHER,#10

1шт.

7

225-14110

NUT,#10-24

1шт.

8

435-7614

GROOVED PIN,3/16" x 7/8", Type G

3/16" x 7/8", Type G

1шт.

9

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 x 1/2 HSFCHCS

1шт.

10

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

roller

1шт.

11

866566

FASTENER,#10 - 32 x 9/16"

special, #10-32

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

13

63586

SHAFT

3/8 x 1-1/8

1шт.

14

S120261

PIN

wire hair cotton, .149

1шт.

15

700718710

KNIFE

twine

1шт.

16

6613624

WASHER, LOCK

TAB

1шт.

17

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

18

700707474

BOX

PLASTIC

1шт.
