Запчасти Case IH 8576 (06-018) - KNOTTER HEAD ASSEMBLY - CONTINUED (14) - BALE CHAMBER

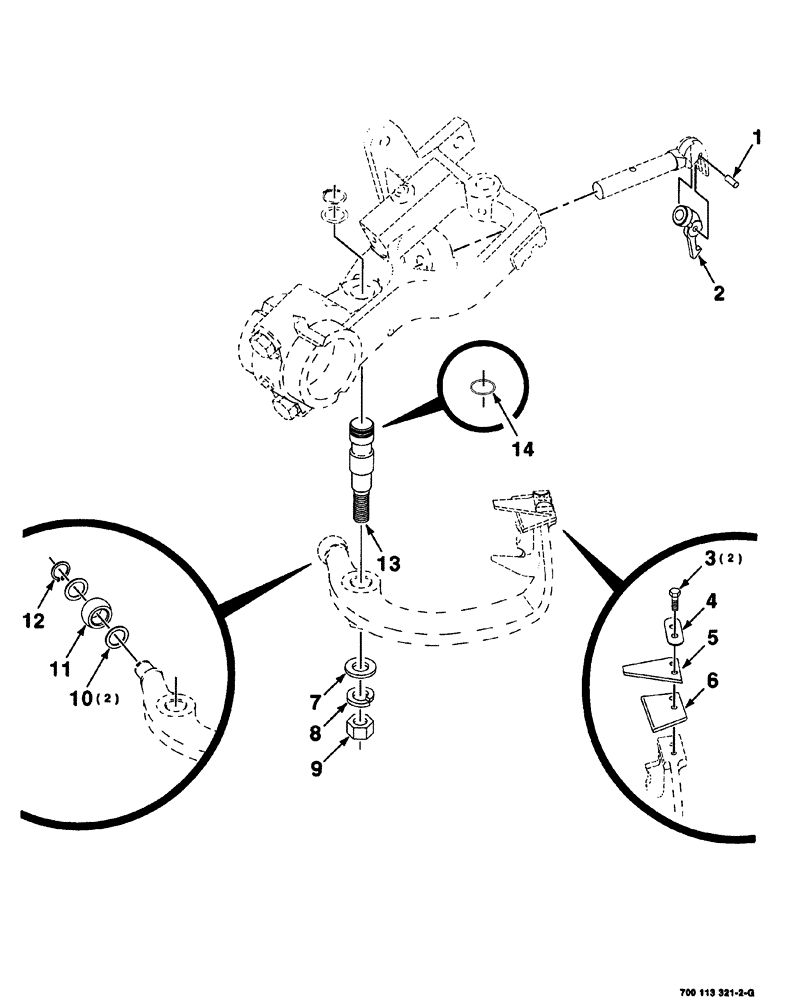

Схема запчастей Case IH 8576 - (06-018) - KNOTTER HEAD ASSEMBLY - CONTINUED (14) - BALE CHAMBER
5
11
2
10
14
3
9
1
12
7
4
8
13
6

Артикул

Название

Примечание

Количество

1

37-138

DOWEL,3/16" x 1/2"

PIN, 3/16 x 1/2

1шт.

2

1712835

HOOK

BILL ASSEMBLY

1шт.

3

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

4

6613624

WASHER, LOCK

TAB

1шт.

5

700718710

KNIFE

twine

1шт.

6

700102136

KNIFE

BASE, twine

1шт.

7

495-11053

WASHER,1/2", SAE

Special

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

9

425-118

NUT,1/2"-20, G5

1шт.

10

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

MACHINERY, 9/16 x 20 GA.

2шт.

11

700122799

ROLLER

spherical

1шт.

12

7852577

RING, SNAP

RING SNAP retaining

1шт.

13

6591580

SHAFT

twine, Includes: Ref. 14

1шт.

14

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

Выбрано товаров: 14
