Запчасти Case IH 8576 (06-014) - KNOTTER DRIVE CLUTCH ASSEMBLY, S.N. CFH0117287 AND LATER (14) - BALE CHAMBER

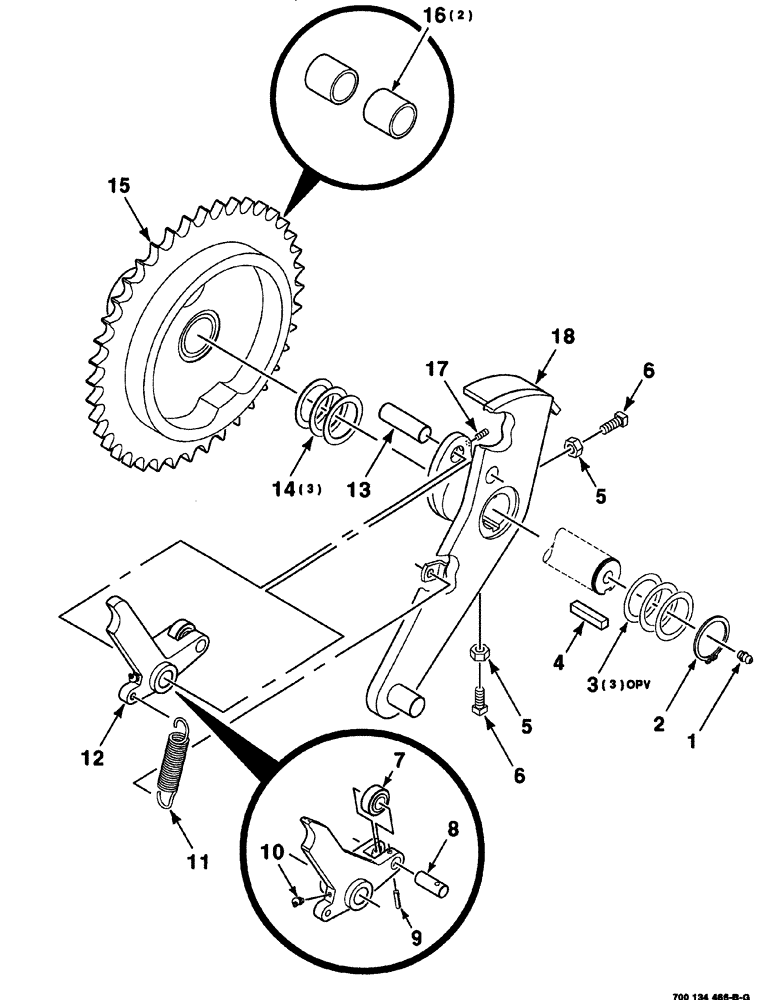

Схема запчастей Case IH 8576 - (06-014) - KNOTTER DRIVE CLUTCH ASSEMBLY, S.N. CFH0117287 AND LATER (14) - BALE CHAMBER
17
8
5
2
7
10
14
1
12
11
5
9
3
13
18
16
6
4
15
6

Артикул

Название

Примечание

Количество

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

2

101-11215

SNAP RING,#215, 2.026", Ext

Retaining

1шт.

3

6523534

SHIM

3шт.

4

61879

KEY

straight, 1/2 x 1/2 x 2-1/2

1шт.

5

700710414

JAM NUT

1/2-13 HJN GR8 NP

2шт.

6

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 x 1-1/4 CPSQHSS NP

2шт.

7

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

8

6524649

PIN

CLUTCH

1шт.

9

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

1шт.

10

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4-28 x 45 Deg.

1шт.

11

758268

SPRING

extension

1шт.

12

700124052

ARM

ASSEMBLY CLUTCH, Includes: Ref. 7, 8, 9 and 10

1шт.

13

6523518

SHAFT

CLUTCH

1шт.

14

6523500

WASHER

3шт.

15

700134467

SPROCKET ASSY.

CAM, 80-45, Includes: Ref. 16

1шт.

16

700122883

BRONZE BUSHING

bronze

2шт.

17

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 x 3/4 HDPHSSS NP

1шт.

18

700137474

ARM

WA CLUTCH

1шт.

Выбрано товаров: 18
