Запчасти Case IH 8576 (06-006) - KNOTTER FRAME ASSEMBLY, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER

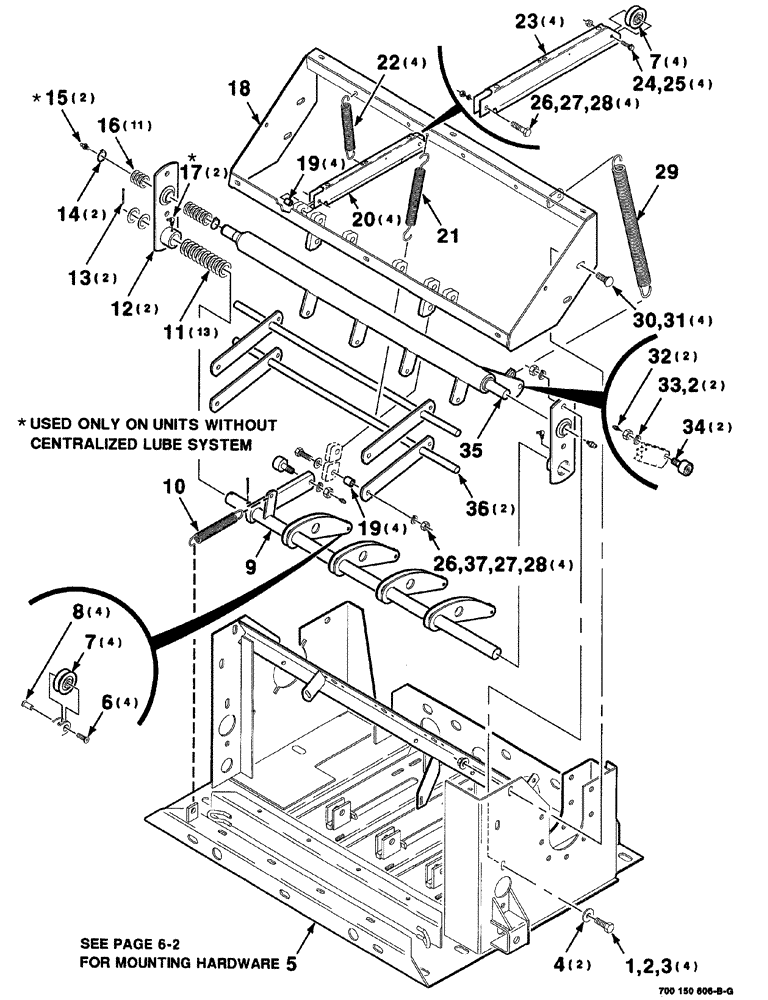

Схема запчастей Case IH 8576 - (06-006) - KNOTTER FRAME ASSEMBLY, S.N. CFH0163129 AND LATER (14) - BALE CHAMBER
29
37
17
28
6
8
5
30
34
26
14
32
19
13
19
3
4
28
18
35
16
26
20
31
22
1
15
9
27
2
23
2
27
21
7
11
7
12
25
33
10
24
36

Артикул

Название

Примечание

Количество

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

5

700123351

FUNNEL

FRAME WA knotter

1шт.

6

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 x 1/2 HSFCHCS

4шт.

7

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

roller

8шт.

8

866566

FASTENER,#10 - 32 x 9/16"

special, #10-32

4шт.

9

700123374

ARM

ASSEMBLY, Includes: Ref. 6, 7 and 8

1шт.

10

858308

SPRING

extension

1шт.

11

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 18 gauge NRMB

13шт.

12

700113342

SUPPORT

bearing

2шт.

13

432-1028

COTTER PIN,5/32" x 1 3/4"

2шт.

14

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

16

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 x 18 gauge NRMB

11шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 Deg. ZERK

2шт.

18

700123376

FUNNEL

FRAME WA tension arm

1шт.

19

6523799

BUSHING

8шт.

20

700150609

ARM

ASSEMBLY TENSION, Includes: Ref. 23, 24, 25 and 7

4шт.

21

700712484

SPRING

extension

1шт.

22

758482

TENSION SPRING

extension

4шт.

23

700150610

ARM

tension

4шт.

24

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 x 1 HWHMS

4шт.

25

1703354

NUT

1/4-20 HFTLN GR/G

4шт.

26

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

27

492-11031

LOCK WASHER,5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

8шт.

29

700714985

SPRING

extension

1шт.

30

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

4шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

32

219-17

LUBE NIPPLE,3/16" NPTF

Push

2шт.

33

425-118

NUT,1/2"-20, G5

2шт.

34

8050866

CAM FOLLOWER

roller, cam

2шт.

35

700123370

SHAFT

finger twine

1шт.

36

700123381

ROD

MONITORING

2шт.

37

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.

Выбрано товаров: 37
