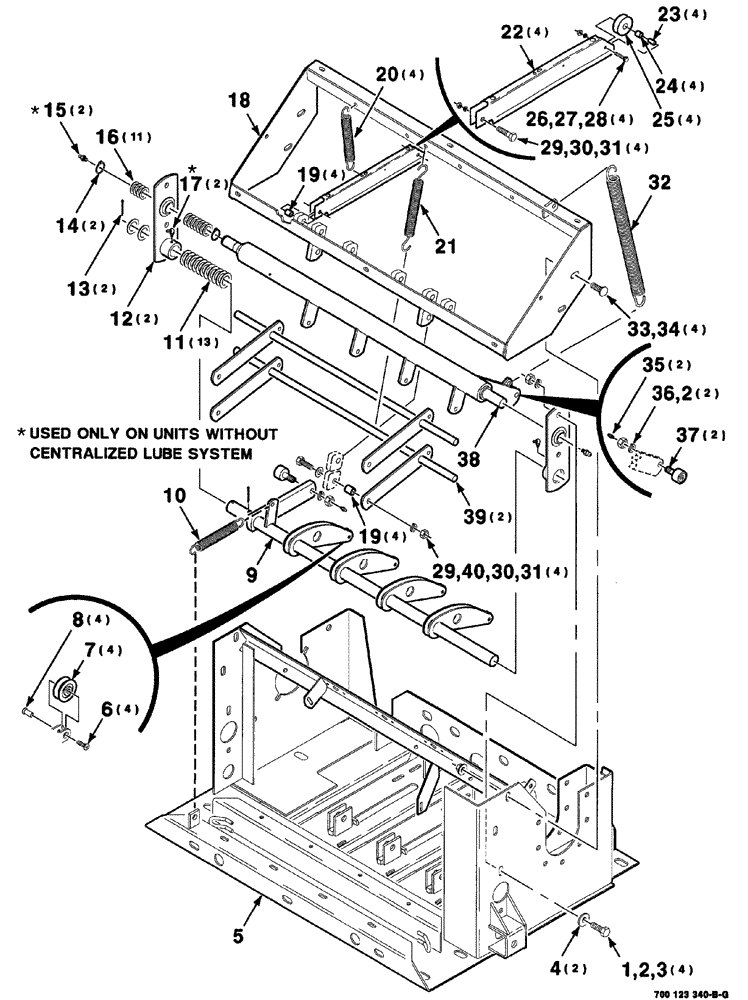

Запчасти Case IH 8576 (06-004) - KNOTTER FRAME ASSEMBLY, S.N. CFH0113001 THRU CFH0163128 (14) - BALE CHAMBER

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

5

700123351

FUNNEL

FRAME WA knotter

1шт.

6

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 x 1/2 HSFCHCS

4шт.

7

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

roller

4шт.

8

866566

FASTENER,#10 - 32 x 9/16"

special, #10-32

4шт.

9

700123374

ARM

ASSEMBLY, Includes: Ref. 6, 7 and 8

1шт.

10

858308

SPRING

extension

1шт.

11

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 x 18 gauge NRMB

13шт.

12

700113342

SUPPORT

bearing

2шт.

13

432-1028

COTTER PIN,5/32" x 1 3/4"

2шт.

14

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

16

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 x 18 gauge NRMB

11шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 x 45 Deg. ZERK

2шт.

18

700123376

FUNNEL

FRAME WA tension arm

1шт.

19

6523799

BUSHING

8шт.

20

758482

TENSION SPRING

extension

4шт.

21

700712484

SPRING

extension

1шт.

22

700150609

ARM

tension

4шт.

23

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

SLEEVE bushing

4шт.

24

7849656

SLEEVE

roller

4шт.

25

6529945

ROLLER

PULLEY

4шт.

26

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

#10-24 x 1 HWHMS

4шт.

27

492-11010

LOCK WASHER,#10

4шт.

28

225-14110

NUT,#10-24

4шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

30

492-11031

LOCK WASHER,5/16"

8шт.

31

425-105

NUT,5/16"-18, G5

8шт.

32

700714985

SPRING

extension

1шт.

33

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

4шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

35

219-17

LUBE NIPPLE,3/16" NPTF

Push

2шт.

36

425-118

NUT,1/2"-20, G5

2шт.

37

8050866

CAM FOLLOWER

roller, cam

2шт.

38

700123370

SHAFT

finger twine

1шт.

39

700123381

ROD

MONITORING

2шт.

40

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.
