Запчасти Case IH 8576 (06-002) - KNOTTER AND MOUNTING ASSEMBLY (14) - BALE CHAMBER

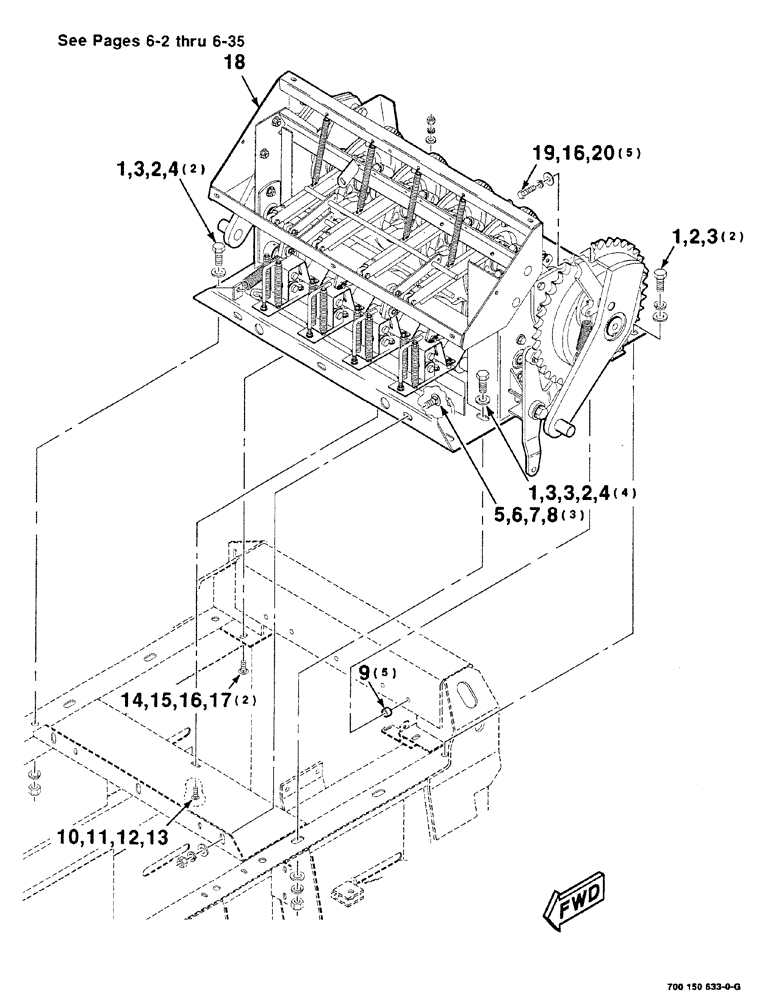

Схема запчастей Case IH 8576 - (06-002) - KNOTTER AND MOUNTING ASSEMBLY (14) - BALE CHAMBER
13
3
6
2
14
18
12
2
8
15
1
3
20
10
9
17
7
3
16
1
1
11
16
5
2
4
19
3
4

Артикул

Название

Примечание

Количество

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

3

705566

WASHER

hardened plain, 3/4

12шт.

4

425-1012

NUT,3/4"-10, G5

6шт.

5

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 RHSNB

3шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

5шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

7шт.

17

425-108

NUT,1/2" - 13, Gr 5

2шт.

18

700150606

KNOTTER ASSY.

complete

1шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

20

495-21056

WASHER,1/2"

wide plain, 1/2

5шт.

Выбрано товаров: 20
