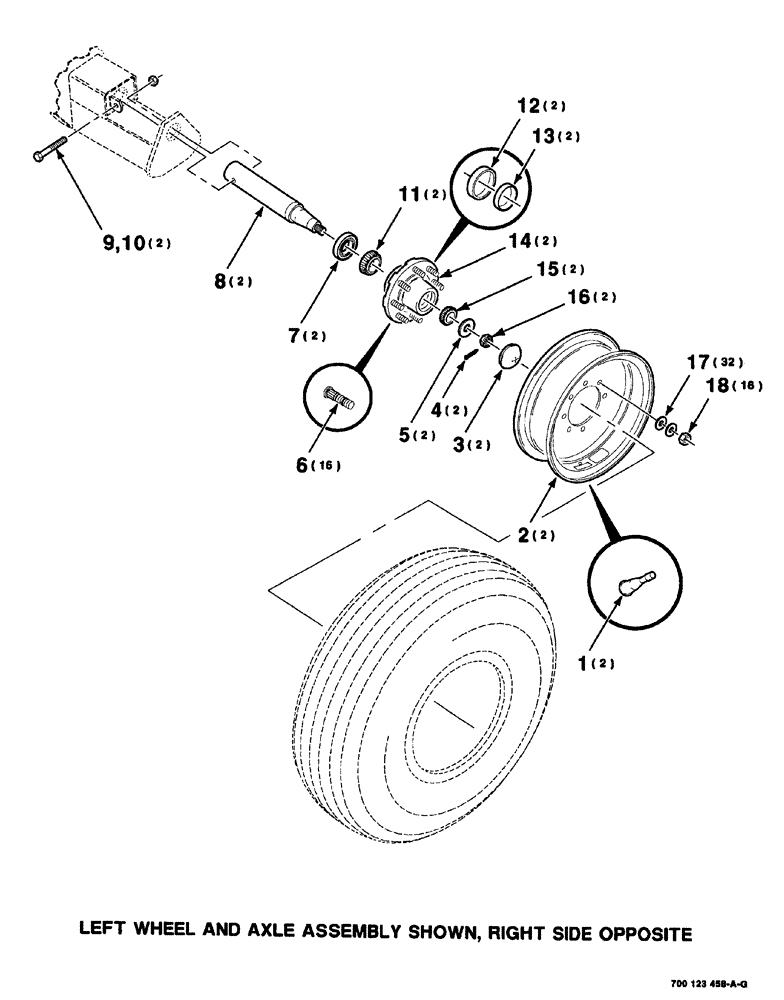

Запчасти Case IH 8576 (07-026) - WHEEL, HUB AND AXLE ASSEMBLY (12) - MAIN FRAME

1

7027469

VALVE

STEM

2шт.

2

700715026

RIM

WHEEL WHEEL 16.1 x W18C

2шт.

3

826784

CAP

hub

2шт.

4

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

5

700719480

WASHER

spindle

2шт.

6

700710568

BOLT,Rib Nk, 5/8" - 18 x 2 1/4", Gr 5

rib neck, 5/8-18 x 2-1/4

16шт.

7

A178381

SEAL

2шт.

8

700123459

SPINDLE

SHAFT

2шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5/8-11 x 4 C

2шт.

10

232-41110

NUT,5/8"-11, GC

5/8-11 HTLN GR/B

2шт.

11

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2шт.

12

625743C1

BEARING CUP,90mm OD x 18.5mm W

cup

2шт.

13

663558R1

BEARING CUP

2шт.

14

700710569

HUB

ASSEMBLY, Includes: Ref. 6, 12 and 13

2шт.

15

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

2шт.

16

25-1316

NUT,1"-14, G5

2шт.

17

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

32шт.

18

425-1110

NUT,5/8"-18, G5

16шт.
