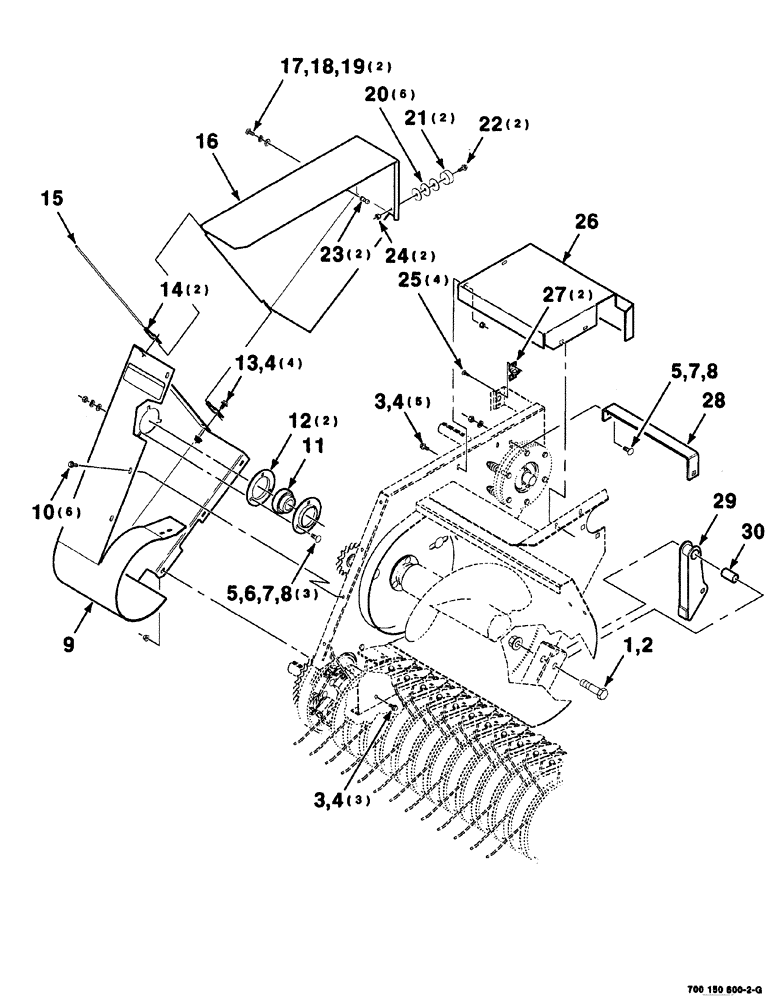

Запчасти Case IH 8576 (07-024) - PICKUP SHIELDS ASSEMBLY-RIGHT (12) - MAIN FRAME

1

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4-10 x 3 C

1шт.

2

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

1шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

4шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

3шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

700133183

PANEL

SHIELD right (Includes Decal)

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

11

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

1шт.

12

617863R1

FLANGED BEARING

bearing

2шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 C

4шт.

14

700108658

SUPPORT

hinge

2шт.

15

6844344

PIN

hinge

1шт.

16

700123796

SHIELD

right

1шт.

17

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

GR2

2шт.

18

492-11010

LOCK WASHER,#10

2шт.

19

495-31022

WASHER,#10

2шт.

20

76695

WASHER

fender

6шт.

21

700708648

BUMPER

2шт.

22

700707203

CAPTIVE WASHER SCREW

#12-24 x 3/4 HWHMS

2шт.

23

1960762C1

STUD

latch

2шт.

24

1954816C1

LOCK NUT

special, #12-24 HCLN

2шт.

25

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 x 1/2 CRTHTFTS

4шт.

26

700123849

SHIELD

1шт.

27

1960763C3

LATCH

CLIP

2шт.

28

700123807

SUPPORT

1шт.

29

700123808

PIVOT

WA CYLINDER

1шт.

30

700113281

SPACER

1шт.
