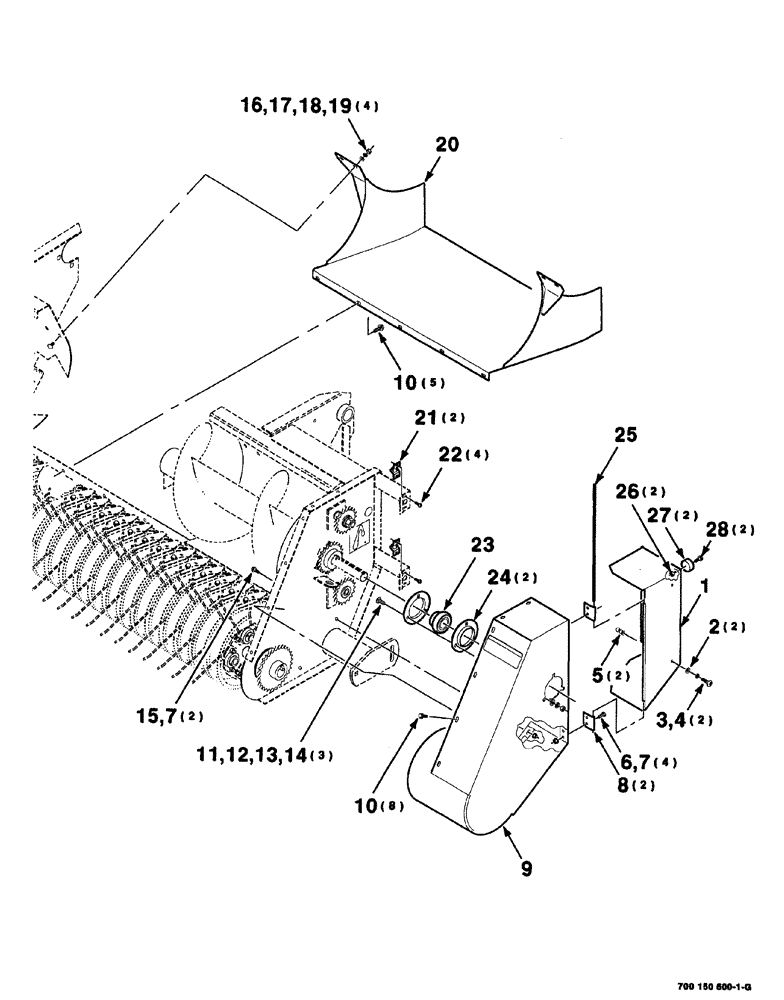

Запчасти Case IH 8576 (07-022) - PICKUP SHIELDS ASSEMBLY-LEFT (12) - MAIN FRAME

1

700123795

SHIELD

left

1шт.

2

495-31022

WASHER,#10

2шт.

3

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

GR2

2шт.

4

492-11010

LOCK WASHER,#10

2шт.

5

1960762C1

STUD

latch

2шт.

6

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 C

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

8

700108658

SUPPORT

HINGE

2шт.

9

700133182

PANEL

SHIELD left (Includes Decal)

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

3шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

16

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

18

492-11031

LOCK WASHER,5/16"

4шт.

19

425-105

NUT,5/16"-18, G5

4шт.

20

700123801

CHUTE (DOWNWARD)

WA

1шт.

21

1960763C3

LATCH

CLIP

2шт.

22

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 x 1/2 CRTHTFTS

4шт.

23

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

spherical

1шт.

24

617863R1

FLANGED BEARING

bearing

2шт.

25

6474316

PIN

hinge

1шт.

26

1954816C1

LOCK NUT

special, #12-24 HCLN

2шт.

27

700708648

BUMPER

2шт.

28

463-3128

SCREW,Hex Wash Hd, #12-24 x 1/2"

#12-24 x 1/2 HWHMS

2шт.
