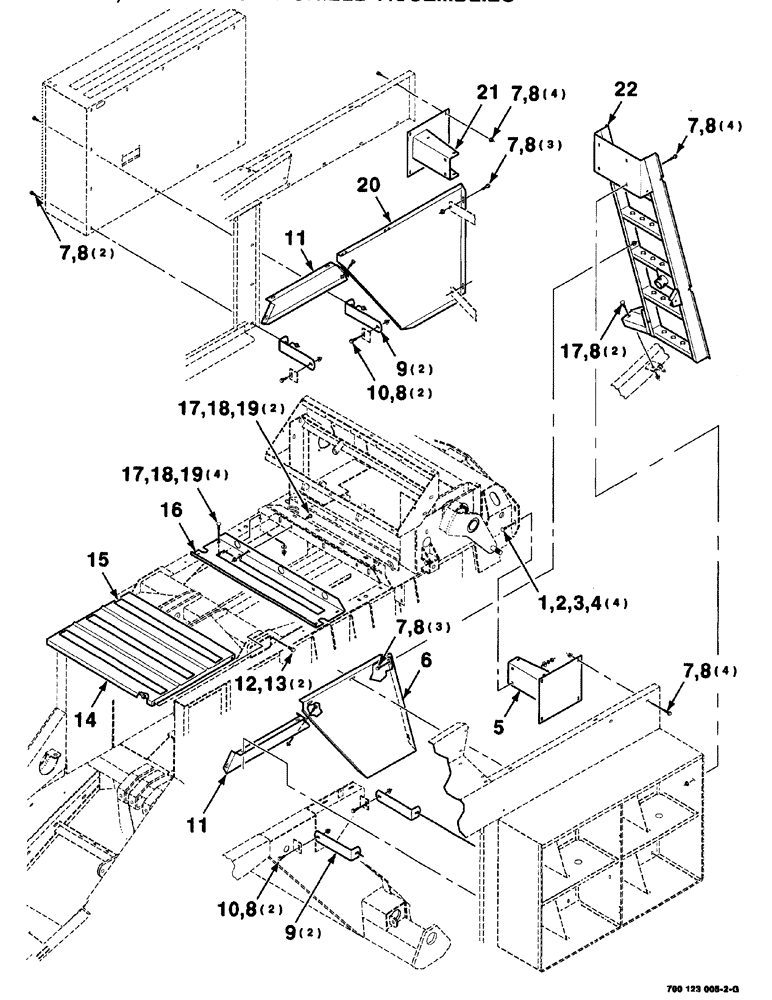

Запчасти Case IH 8576 (07-014) - LADDER, TOP AND SIDE SHIELD ASSEMBLIES (12) - MAIN FRAME

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

4шт.

5

700123915

SUPPORT

WA left

1шт.

6

700123920

SHIELD

left

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

20шт.

8

231-5146

FLANGE NUT,3/8"-16

26шт.

9

700123922

SUPPORT

mounting

4шт.

10

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

11

700123928

SHIELD

2шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

14

700123924

LID

WA, Includes: Ref. 15

1шт.

15

6849178

WALL

SAFETY WALK (10 foot bulk)

1шт.

16

700123923

CHANNEL

top, Includes: Ref. 15

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

8шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

19

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6шт.

20

700123921

SHIELD

right

1шт.

21

700123916

SUPPORT

WA right

1шт.

22

700133081

LADDER

WA

1шт.
