Запчасти Case IH 8576 (07-012) - KNOTTER PLATFORM AND SHIELDS ASSEMBLY (12) - MAIN FRAME

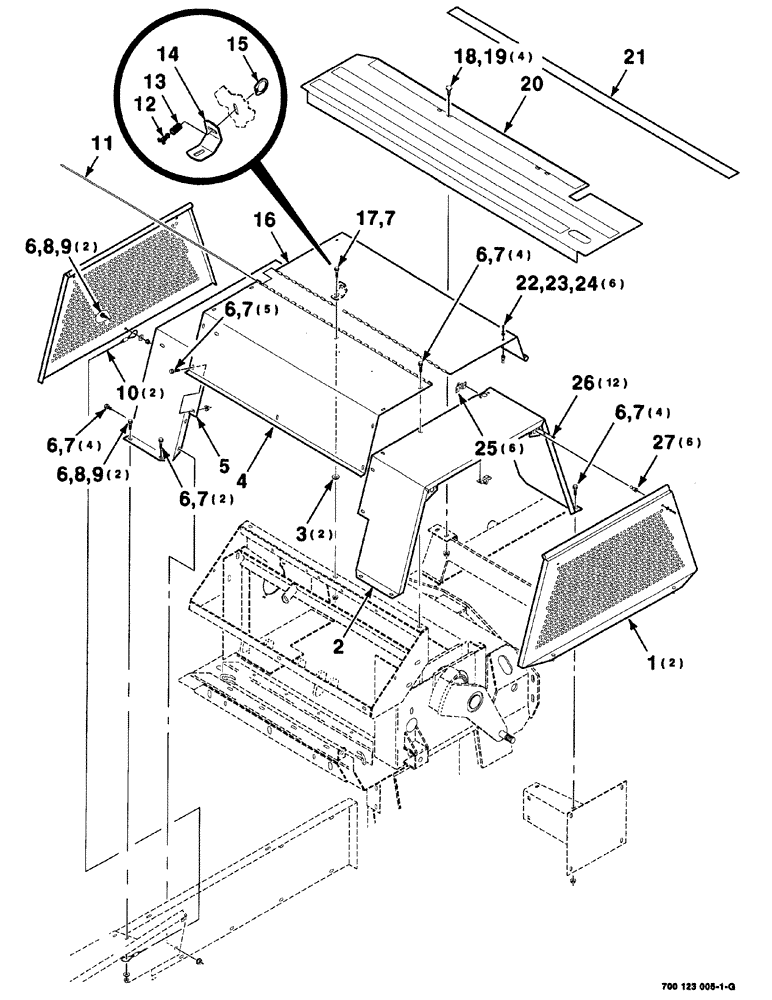

Схема запчастей Case IH 8576 - (07-012) - KNOTTER PLATFORM AND SHIELDS ASSEMBLY (12) - MAIN FRAME
23
21
6
13
7
7
6
7
9
7
25
6
16
22
3
8
26
6
27
17
7
24
6
12
6
11
6
14
18
19
1
7
8
20
2
9
10
5
4
15

Артикул

Название

Примечание

Количество

1

700123862

SHIELD

WA end

2шт.

2

700123472

FUNNEL

FRAME WA left

1шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

4

700123902

SHIELD

1шт.

5

700123473

FUNNEL

FRAME WA right

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

23шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

8

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

10

8021693

CABLE

2шт.

11

6854301

PIN

hinge

1шт.

12

7894975

CLIP

1шт.

13

7758212

SPRING

compression

1шт.

14

6564595

STOP

DOOR

1шт.

15

7894967

HANDLE

1шт.

16

700129715

SHIELD

KNOTTER, top

1шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

1шт.

18

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

700123910

PLATFORM

ASSEMBLY, (Includes Safety Walk)

1шт.

21

6849178

WALL

SAFETY WALK, 10 foot

1шт.

22

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

GR 50 M

6шт.

23

492-11010

LOCK WASHER,#10

6шт.

24

495-31022

WASHER,#10

6шт.

25

1960763C3

LATCH

mounting latch

6шт.

26

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 x 1/2 CRTHTFTS

12шт.

27

1960762C1

STUD

latch

6шт.

Выбрано товаров: 27
