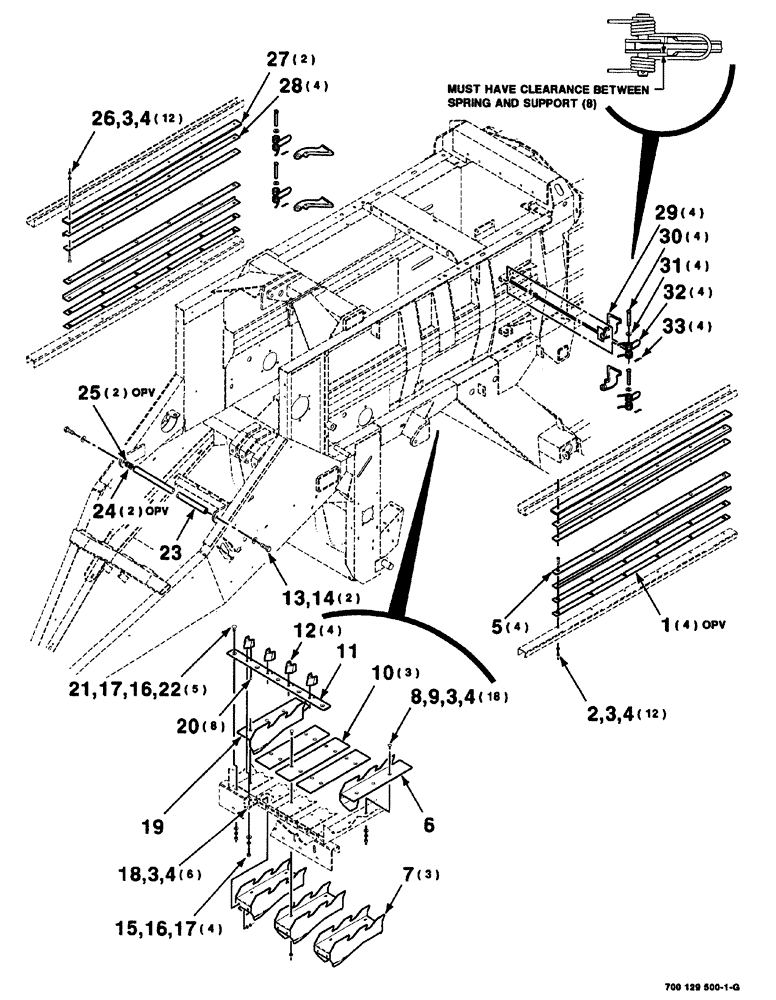

Запчасти Case IH 8576 (07-002) - PLUNGER RAILS, KNIVES AND HAY DOG ASSEMBLIES (12) - MAIN FRAME

1

700123726

SHIM

0.46/.018

4шт.

2

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 x 1-1/4 HSFCHCS SPL

12шт.

3

492-11038

LOCK WASHER,3/8"

48шт.

4

425-106

NUT,3/8"-16, Cl 5

48шт.

5

700123724

RAIL

hardened

4шт.

6

700129645

DRIVE DOG

HAY, wa left

1шт.

7

700129640

DRIVE DOG

HAY, wa

3шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

plow, 3/8-16 x 1-1/4

18шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

18шт.

10

700129586

LARGE PLATE

PLATE, LARGE wear

3шт.

11

700713962

KNIFE,794mm L x 63.5mm W x 7.94mm Thk

1шт.

12

700129647

PROTECTOR

ASSEMBLY NEEDLE, Includes: Ref. 20

4шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

14

705566

WASHER

hardened plain, 3/4

2шт.

15

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

9шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

9шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

6шт.

19

700129646

DRIVE DOG

HAY, wa right

1шт.

20

37-1612

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4

8шт.

21

707448

BOLT

plow, 1/2-13 x 1-1/2

5шт.

22

425-108

NUT,1/2" - 13, Gr 5

5шт.

23

700123494

SUPPORT

1шт.

24

52183

BUSHING

3/4 x 18 gauge NRMB

2шт.

25

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

3/4 x 10 gauge NRMB

2шт.

26

164-54

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 3/4"

3/8-16 x 1-3/4 HSFCHCS SPL

12шт.

27

700123725

RAIL

2шт.

28

700123727

ANGLE

SHIELD

4шт.

29

700137654

DOG

HAY DOG

4шт.

30

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

clevis, 5/8 x 3-3/4

4шт.

31

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

4шт.

32

700706376

SPRING

torsion

4шт.

33

S120261

PIN

wire hair cotter, .148

4шт.
