Запчасти Case IH 8576 (08-016) - HYDRA. CYL. ASSY.-BASE EJECT.,700713998 HYDRA. CYL. ASSY. COMPLETE, 2-1/2 IN. BORE X 20 IN. STROKE (07) - HYDRAULICS

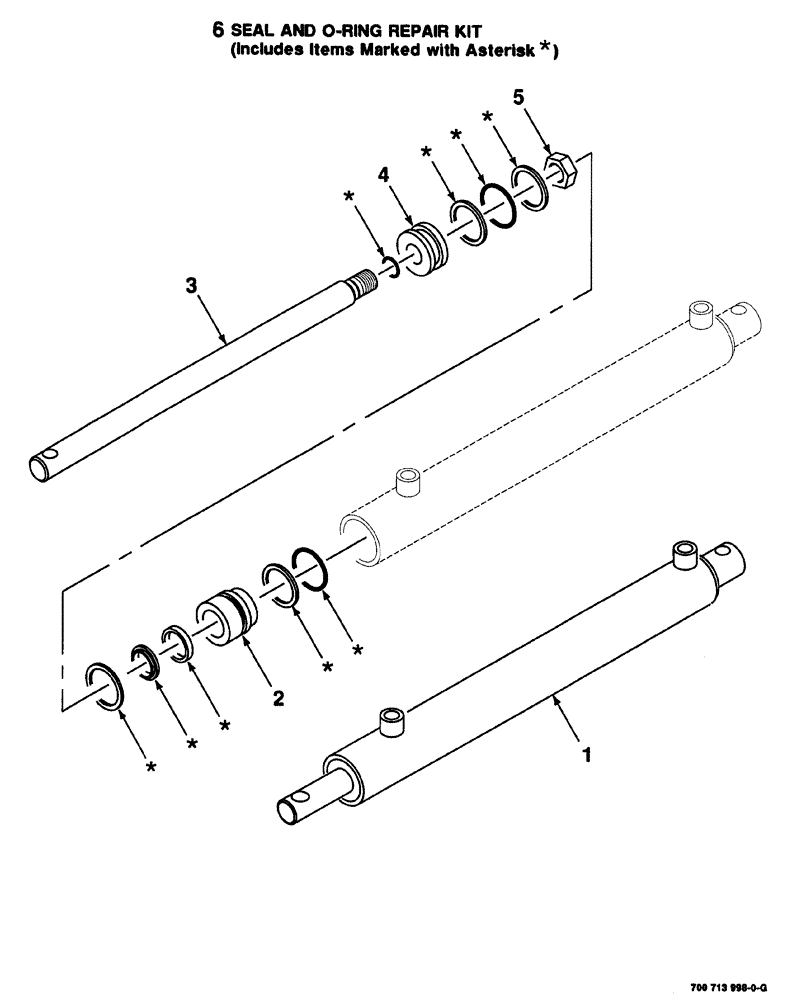

Схема запчастей Case IH 8576 - (08-016) - HYDRA. CYL. ASSY.-BASE EJECT.,700713998 HYDRA. CYL. ASSY. COMPLETE, 2-1/2 IN. BORE X 20 IN. STROKE (07) - HYDRAULICS
2
6
3
1
4
5

Артикул

Название

Примечание

Количество

1

700713998

CYLINDER

hydraulic complete, (2-1/2 inch bore x 20 inch stroke)

1шт.

2

700714384

GUIDE

ROD

1шт.

3

700714383

ROD

1шт.

4

700710421

PISTON

1шт.

5

774315

NUT

hex, 7/8-14

1шт.

6

700714382

KIT

KIT o-ring repair (Includes items in art marked with an asterisk)

1шт.

Выбрано товаров: 6
