Запчасти Case IH 8576 (08-014) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700706395 HYDRAULIC CONTROL VALVE COMPLETE (07) - HYDRAULICS

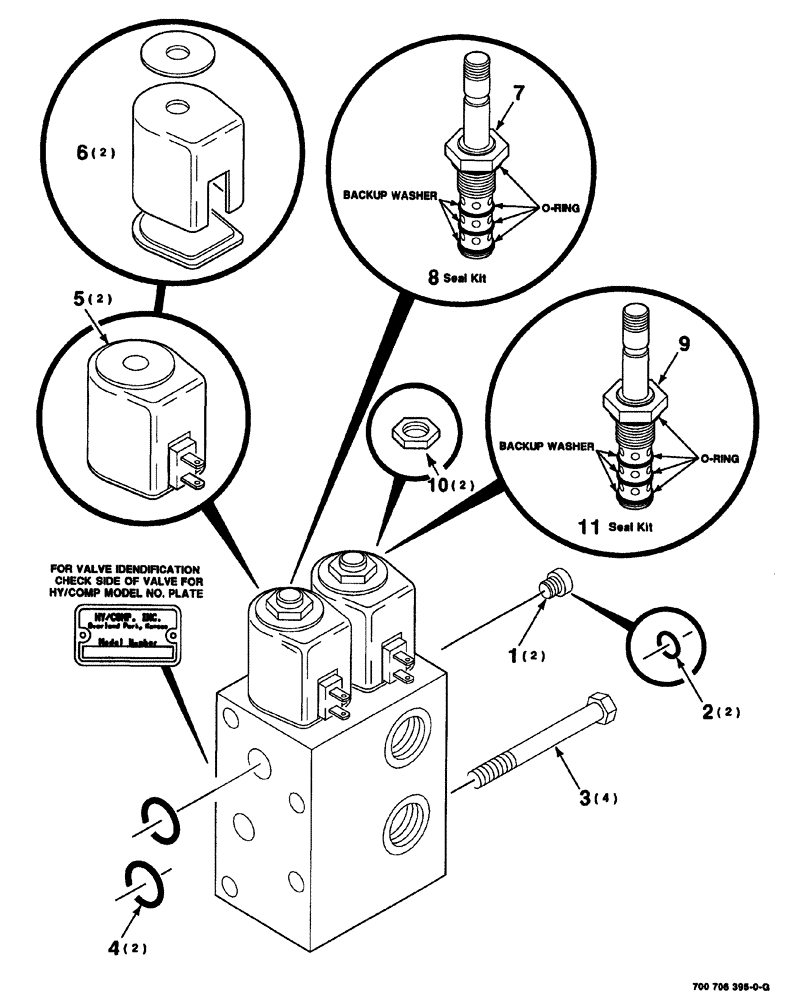

Схема запчастей Case IH 8576 - (08-014) - HYDRAULIC CONTROL VALVE ASSEMBLY, 700706395 HYDRAULIC CONTROL VALVE COMPLETE (07) - HYDRAULICS
2
5
8
6
1
7
4
9
11
10
3

Артикул

Название

Примечание

Количество

1

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

ORB, Includes: Ref. 2

2шт.

2

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

2шт.

3

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 C

4шт.

4

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

2шт.

5

700710176

COIL

COIL

2шт.

6

700707826

REPAIR KIT

KIT, housing

2шт.

7

700706611

CARTRIDGE

1шт.

8

700707215

SEAL KIT

seal

1шт.

9

700706610

CARTRIDGE

CARTRIDGE

1шт.

10

700706151

NUT

2шт.

11

700707843

SEAL KIT

seal

1шт.

Выбрано товаров: 11
