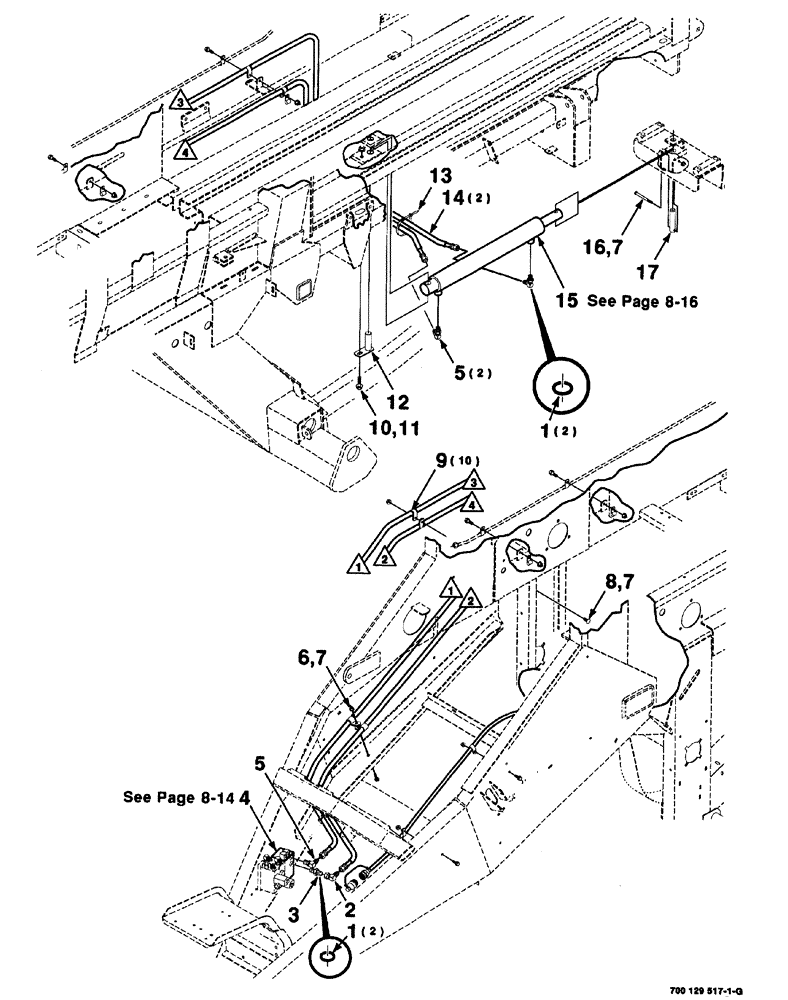

Запчасти Case IH 8576 (08-012) - BALE EJECTOR HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 1

1шт.

4

700706395

VALVE PRESSURE RELIE

accumulator

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 1

3шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

10шт.

10

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2-13 x 1-3/4 HFSGR8

1шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

12

700129696

PIN

WA

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

1шт.

14

CAS1714708

HOSE

hydraulic

2шт.

15

700713998

CYLINDER

hydraulic

1шт.

16

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 x 4-1/2 C

1шт.

17

700129699

PIN

1шт.
