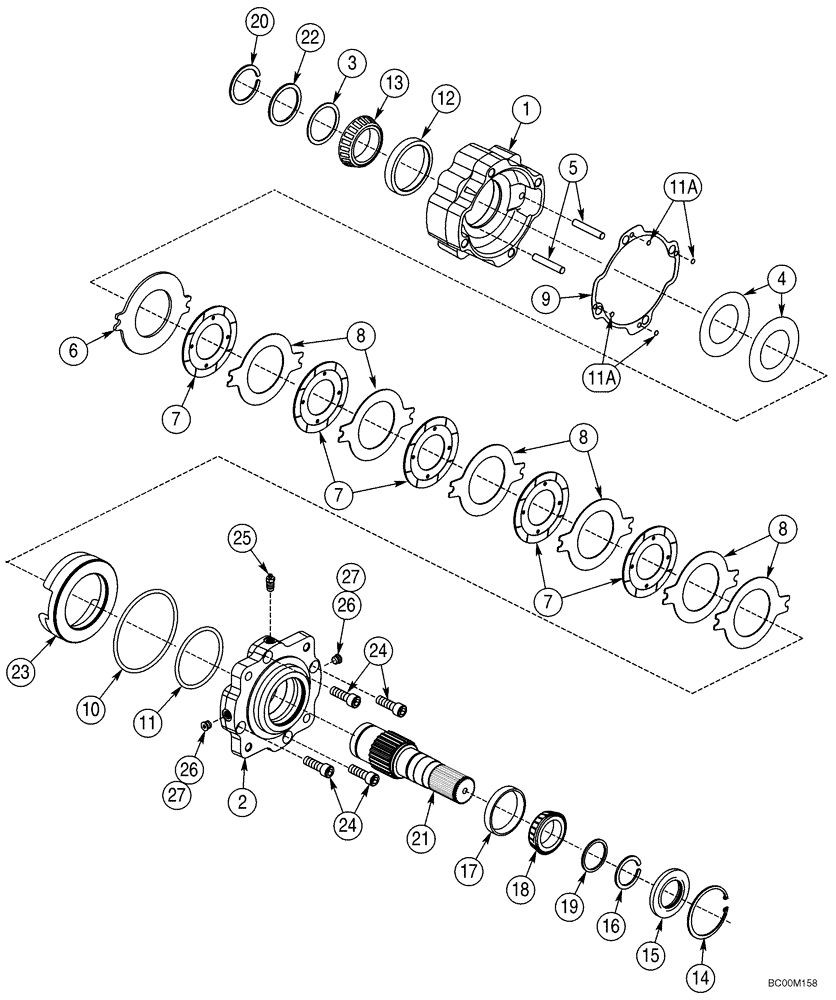

Запчасти Case IH 95XT (07-01) - BRAKE (07) - BRAKES

359619A2

BRAKE ASSY.

Incl. 1 - 3 & 5 - 27; Vendor Part Number 61325-001

1шт.

1

47614153

Brake

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

Plate

1шт.

3

NSS

NOT SOLD SEPARAT

Shim

1шт.

4

NLS

NO LONGER SERVICED

Spring

2шт.

360751A1

SET OF PARTS

Disc; Incl. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Pin

2шт.

6

NSS

NOT SOLD SEPARAT

Disc, Brake; Primary

1шт.

7

NSS

NOT SOLD SEPARAT

Disc, Friction

5шт.

8

NSS

NOT SOLD SEPARAT

Disc, Brake

6шт.

360752A1

SET OF PARTS

Seal; Incl. 9 -11A, 14, 15

1шт.

9

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11a

NSS

NOT SOLD SEPARAT

Shim

4шт.

360753A1

BEARING ASSY

Bearing; Incl. 3, 12, 13, 16 - 20, 22

1шт.

12

81803416

BEARING CUP,112.74mm OD x 19.1mm W

T29620

1шт.

13

84143666

BEARING CONE

Y29675

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

15

298559A2

OIL SEAL

Replaces 298559A1

1шт.

16

84143714

SNAP RING

Small

1шт.

17

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

18

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

1шт.

19

84143559

SHIM

2.258" ID

1шт.

20

84143662

SNAP RING

Large

1шт.

21

47614155

Brake

SHAFT

1шт.

22

84143562

SHIM

2.765" ID

1шт.

23

NSS

NOT SOLD SEPARAT

Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Screw; 5/8 x 2

4шт.

25

NSS

NOT SOLD SEPARAT

Screw, Bleed

1шт.

26

NSS

NOT SOLD SEPARAT

Plug, Hex Socket; 9/16; Incl. 27

2шт.

27

NSS

NOT SOLD SEPARAT

O-Ring; 15/32 ID x 5/64

1шт.
