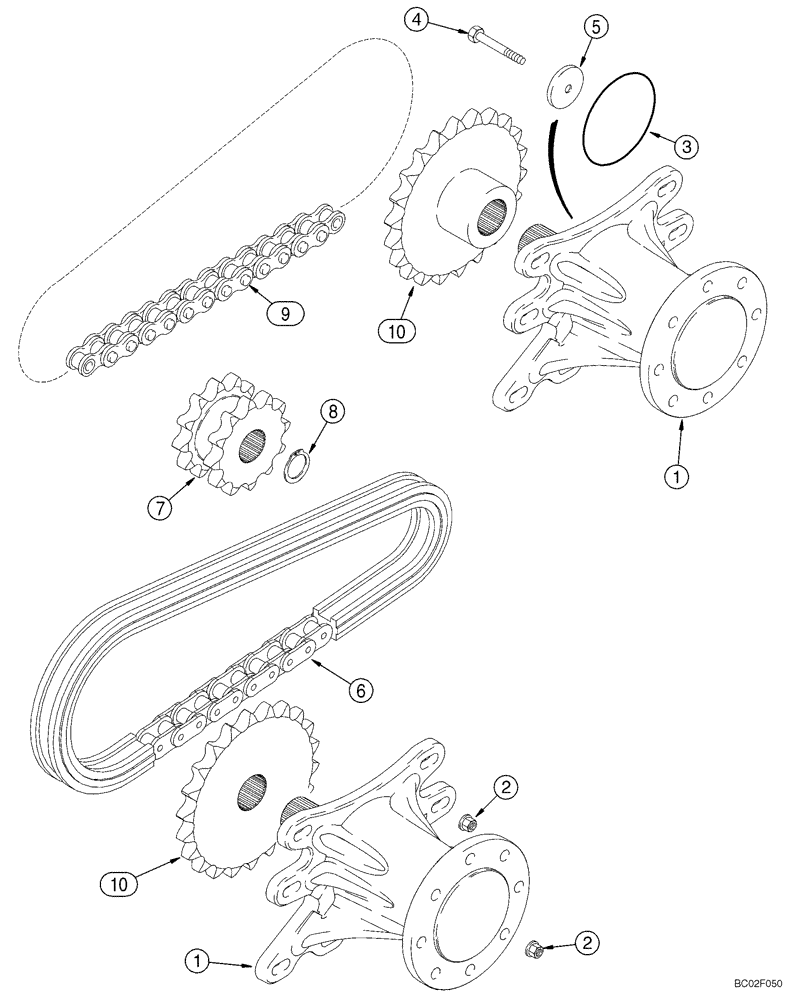

Запчасти Case IH 95XT (06-13) - DRIVE LINE (Jul 26 2010 1:51PM) (06) - POWER TRAIN

1

339431A2

AXLE

See Figure 06-14

4шт.

339431A2R

REMAN-AXLE

REMANUFACTURED AXLE - NA Only

1шт.

339431A2C

CORE-AXLE

Return Number, AXLE - NA Only

1шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32-64шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

199038A1

CHAIN (CE)

120/48P

4шт.

7

199036A2

DRIVE SPROCKET

2шт.

8

100-11212

SNAP RING,#212, Ext

2шт.

9

199039A1

CHAIN (CE)

120/54P

2шт.

10

199037A2

SPROCKET ASSY.

22T

4шт.
