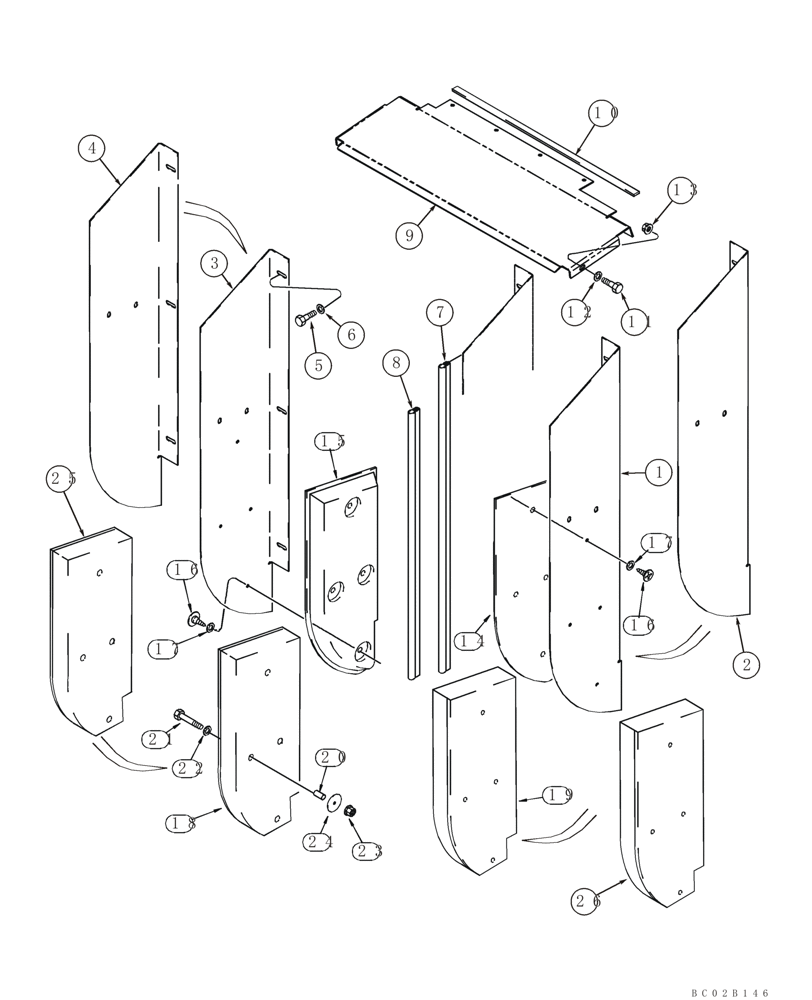

Запчасти Case IH 95XT (09-31A) - CANOPY, ROPS - HEADLINER (09) - CHASSIS

1

186314A3

PANEL

Extension; Right Hand; No Longer Used; Order 448762A1

1шт.

2

448762A1

PANEL

Extension; Right Hand

1шт.

3

186315A3

PANEL

Extension; Left Hand; No Longer Used; Order 448763A1

1шт.

4

448763A1

PANEL

Extension; Left Hand

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

188980A1

SEAL

875 mm; Side Extension; No Longer Used; Order 280491A1

2шт.

8

280491A1

SEAL

725 mm; Side Extension

1шт.

9

284968A2

COWL

Extension

1шт.

10

275066A1

SEAL

628 mm; Hood Extension

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

14

259991A1

INSULATOR

Side Extension; Right Hand; If Used

1шт.

15

259991A1

INSULATOR

Side Extension; Left Hand; If Used

1шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia; Push-In

8шт.

17

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

8шт.

18

315048A1

INSULATOR

Pad; Without Adhesive; Use With Ref 20 - 24; Left Hand; No Longer Used, Order 315048A2

1шт.

19

315049A1

INSULATOR

Pad; Without Adhesive; Right Hand; No Longer Used, Order 315049A2

1шт.

20

293892A1

SPACER

8шт.

21

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

8шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

24

D136108

WASHER

8шт.

25

315048A2

INSULATOR

Pad; Left Hand; Adhesive Back

1шт.

26

315049A2

INSULATOR

Pad; Right Hand; Adhesive Back

1шт.
