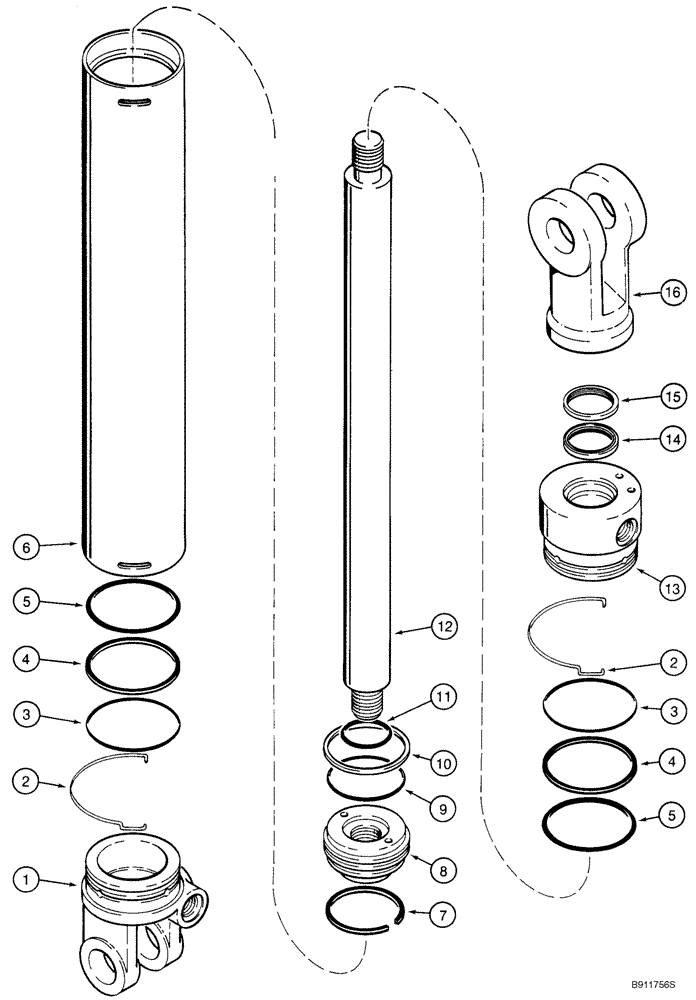

Запчасти Case IH 95XT (08-34) - CYLINDER ASSY - STABILIZER, FOLD DOWN (NORTH AMERICA) (08) - HYDRAULICS

REF

INSTRUCTION

D125 BACKHOE

1шт.

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk; Stabilizer; Incl. 1 - 17

2шт.

1

102681A1

JACK HEAD

1шт.

2

H436693

LOCKING RING

2шт.

3

H436690

SEAL

Dust

2шт.

4

H745760

WASHER

2шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

6

102683A1

TUBE

1шт.

7

H436691

GASKET

Wear

1шт.

8

102682A1

PISTON

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

10

H120188

RING

Backup

1шт.

11

T52486

O-RING

1шт.

12

H436686

PISTON ROD

1шт.

13

102686A1

GLAND

Cylinder

1шт.

14

H436694

SEAL

1шт.

15

H436692

SEAL

1шт.

16

102685A1

JACK HEAD

1шт.

17

H436689

COVER

Not Illustrated; No Longer Required

1шт.

H673837

GASKET KIT

Incl. 2 - 5, 7, 9 - 11, 14, 15, 17

1шт.

403642A1

SEAL

Seal and O-ring, Cylinders; Cylinders With Wide Groove Pistons; Approximately 1/4 Inch Wide

1шт.
