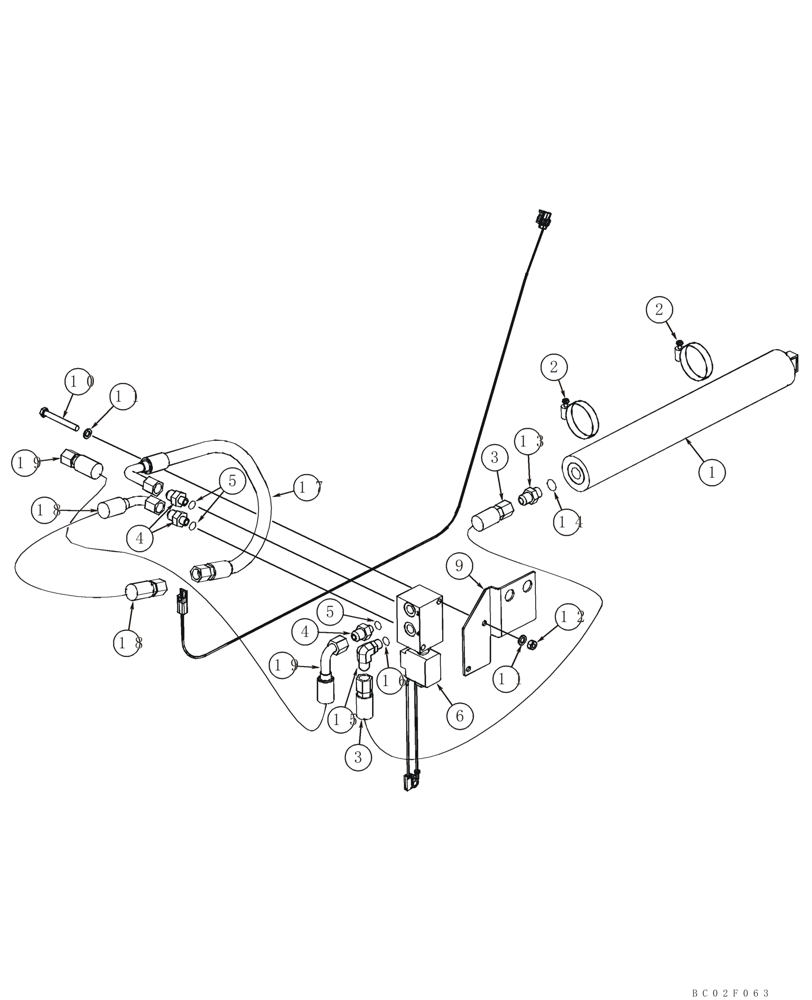

Запчасти Case IH 95XT (08-04) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

1

395831A1

ACCUMULATOR

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

3

417414A1

HOSE ASSY.

1160 mm (45-11/16in)

1шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or; Incl. 5

3шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

308023A1

VALVE

Solenoid; Incl. 7, 8

1шт.

7

344905A1

SEAL KIT

Not Illustrated

1шт.

8

344906A1

KIT

Not Illustrated

1шт.

9

335932A1

SUPPORT

1шт.

10

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

11

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

4шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or; Incl. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

417340A1

HOSE ASSY.

575 mm (22-5/8 in); For Attaching Parts, See Figure 08-01

1шт.

18

417341A1

HOSE ASSY.

550 mm (21-5/8 in)

2шт.

19

308235A1

HOSE ASSY.

For Attaching Parts, See Figure 06-02, Ref 10

2шт.

310838A1

HARNESS

Ride Control; See Figure 04-08

1шт.
