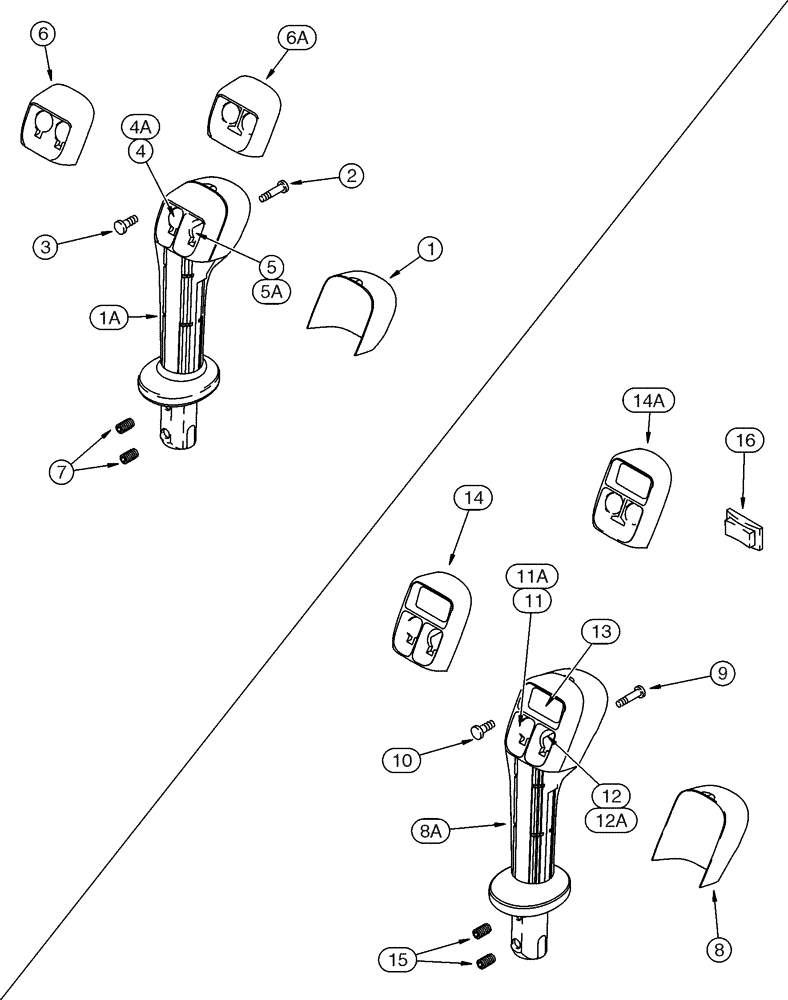

Запчасти Case IH 95XT (04-26) - CONTROLS, LEFT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

227983A2

HANDLE

Left Hand, Two Switch (Brake, Two Speed), Consists Of Ref. 1 - 7

1шт.

1

291792A1

CAP

1шт.

1a

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

2

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

3

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

4

291800A1

SWITCH

Brake, No Longer Available, Order Ref. 4A, 5A, 6A

1шт.

4a

303892A1

SWITCH

Brake

1шт.

5

291801A1

SWITCH

Two Speed, No Longer Available, Order Ref. 4A, 5A, 6A

1шт.

5a

303891A1

SWITCH

Two Speed

1шт.

6

291796A1

PLASTIC PLATE

No Longer Available, Order 6A

1шт.

6a

291796A2

PLASTIC PLATE

1шт.

7

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

233435A3

HANDLE

Left Hand, Three Switch (Brake, Two Speed, High Flow), Consists Of Ref. 8 - 15

1шт.

8

291793A1

CAP

1шт.

8a

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

9

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

10

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

11

291800A1

SWITCH

Brake, No Longer Available, Order Ref. 11A, 12A, 14A

1шт.

11a

303892A1

SWITCH

Brake

1шт.

12

291801A1

SWITCH

Two Speed, No Longer Available, Order Ref. 11A, 12A, 14A

1шт.

12a

303891A1

SWITCH

Two Speed

1шт.

13

291804A1

SWITCH

High Flow

1шт.

14

291797A1

PLASTIC PLATE

No Longer Available, Order 14A

1шт.

14a

291797A2

PLASTIC PLATE

1шт.

15

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

16

303893A1

BOOT

1шт.
