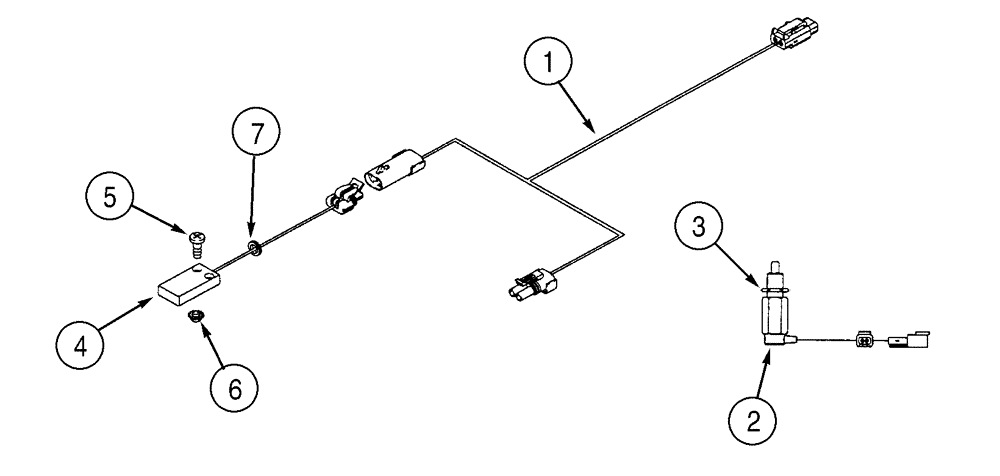

Запчасти Case IH 95XT (04-19) - SEAT BAR HARNESS (NORTH AMERICA -JAF0257312 / EUROPE -JAF0274307) (04) - ELECTRICAL SYSTEMS

1

301405A1

CONNECTOR, ELEC

CONNECTOR Seat Harness to Sensor Switch

1шт.

2

280925A1

SWITCH

Sensor, Interlock

1шт.

3

832-10416

NUT,M16 x 2, Cl 8

1шт.

4

198310A1

SWITCH

Seat Bar

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

6

193-1003

NUT,Keps, w/LW,#6-32

2шт.

7

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

No Longer Used, Order 87530614

1шт.

7

87530614

GROMMET

1шт.
