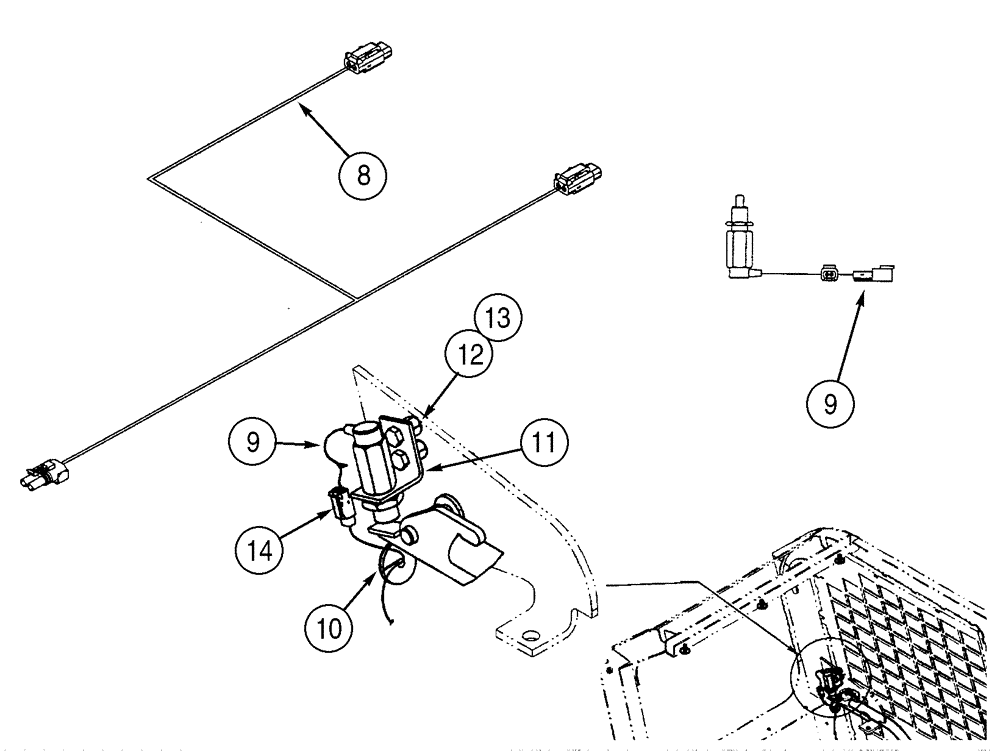

Запчасти Case IH 95XT (04-19[A]) - SEAT BAR HARNESS (NORTH AMERICA JAF0257313- / EUROPE JAF0274308-) (04) - ELECTRICAL SYSTEMS

8

321390A1

HARNESS

Seat Bar, Interlock, N.A. Only JAF0257313-

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock, Europe Only JAF0274308-

2шт.

333743A2

CONNECTION,ELECTRIC

Kit, Installation, Seat Bar, Consists Of 9- 19, Replaces 333743A1, N.A. Only -JAF0311356 / Europe Only -JAF0274359

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock

1шт.

10

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock, If Equipped; No Longer Used, Order 87530614

1шт.

10

87530614

GROMMET

1шт.

11

334243A1

SUPPORT

If Equipped

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If Equipped

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

If Equipped

2шт.

14

337646A1

HARNESS

If Equipped

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

Not Illustrated, See Page(s) 9-101, 9-105

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Not Illustrated, See Page(s) 9-101, 9-105

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2, Not Illustrated, See Page(s) 9-101, 9-105

2шт.

18

318038A1

BAR ASSY.

Not Illustrated, See Page(s) 9-101, 9-105

1шт.

19

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Not Illustrated, See Page(s) 9-115

8шт.
