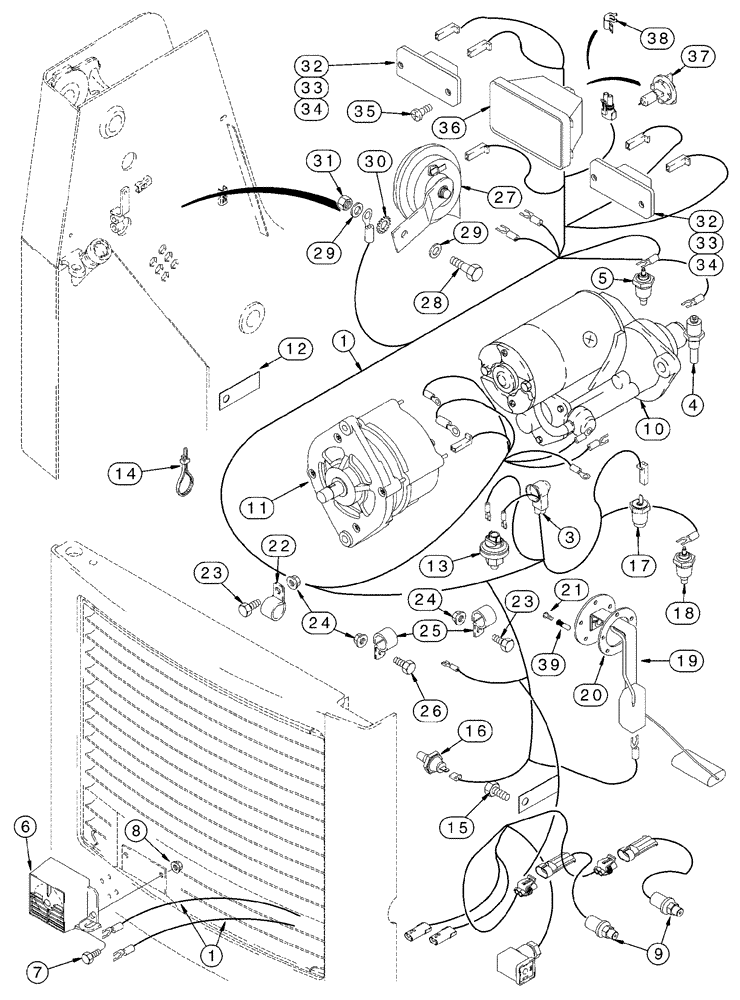

Запчасти Case IH 95XT (04-09) - CHASSIS HARNESS, REAR (NORTH AMERICA -JAF0237963) (04) - ELECTRICAL SYSTEMS

1

250863A3

HARNESS

Chassis, Includes 3, See Page(s) 4-17 - 4-21, After Stock is Exhausted, Order 250863A7 (4-33), See Note

1шт.

3

280326A1

BOOT

1шт.

4

H439301

SWITCH

Hydraulic Temperature

1шт.

Ref. 4, hydraulic temperature switch is located near Ref. 5, hydaulic temperature sender on 250863A3 harness.

1шт.

5

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Hydraulic Temperature, If Equipped

1шт.

6

283178A3

ALARM

Back-up, No Longer Available, Order 325258A1, See Page(s) 4-41

1шт.

6

325258A1

ALARM

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

8

832-41306

NUT,M6 x 1, Cl 10

2шт.

9

251905A2

SWITCH

Brake Pressure, Charge Pressure

2шт.

10

1987559C1

STARTING MOTOR

See Page(s) 4-3 - 4-7

1шт.

10

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

10

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

10

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

10

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

11

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Page(s) 4-9

1шт.

11

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

12

A37179

CLIP

3шт.

13

1983233C1

RESTRICTION SWITCH

SWITCH, Air Filter

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

16

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH 1/8 PT, Engine Oil Pressure, - JAF0221147

1шт.

16

277016A1

PRESSURE SWITCH

Engine Oil, M10, JAF0221148 -

1шт.

17

1345488C3

TEMPERATURE SWITCH

Engine Temp, Replaces 1345488C2

1шт.

18

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Temp, If Equipped

1шт.

19

238143A1

SENDER UNIT

Fuel Level

1шт.

20

528359R4

GASKET,3.05mm Thk

Replaces A11822

1шт.

21

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

25

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

341825A1

HORN

12V, See Page(s) 4-71, Replaces 190155A1

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

30

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

31

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

32

233163A2

LAMP, TAIL

LIGHT, TAIL Includes 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

Lens, Red

1шт.

34

259499A1

BULB

12V, 5W

1шт.

35

260-13414

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

No. 8 st x 7/8

2шт.

36

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes 37, 38

1шт.

37

259702A1

BULB

1шт.

38

259701A1

CLIP,ELECTRICAL

1шт.

39

196985A1

ROD,THREADED

THREADED ROD Use With REF 21, 490-11012, Use Loctite No. 592

5шт.

B17425

LOCTITE

Loctite, No. 592, 50 ml

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
