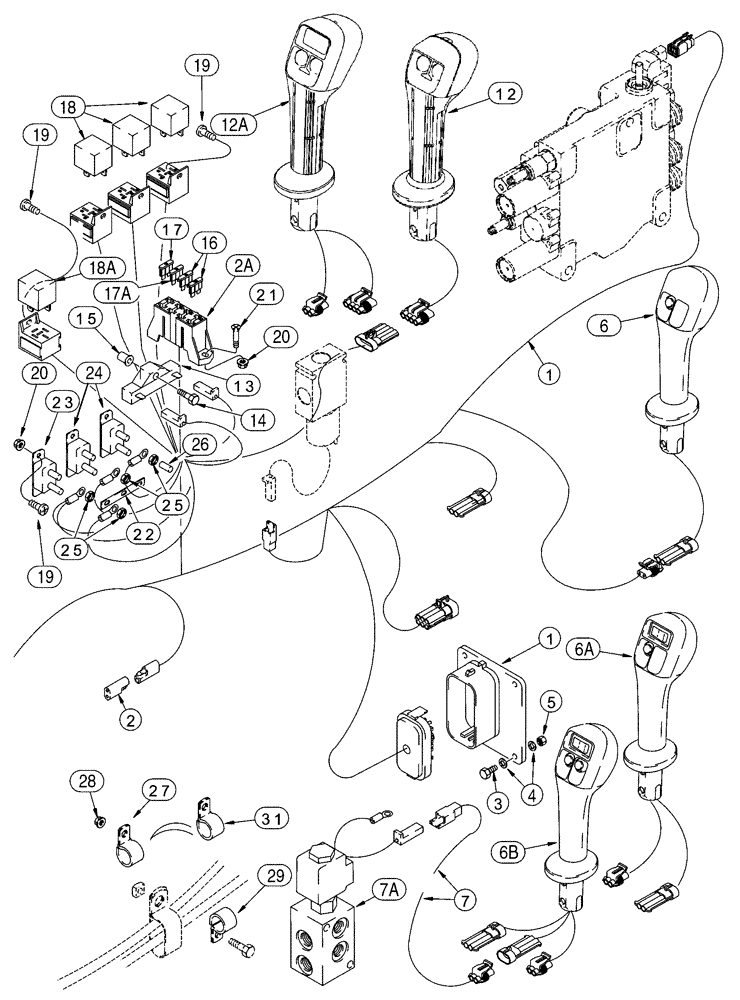

Запчасти Case IH 95XT (04-07) - CHASSIS HARNESS, FRONT (NORTH AMERICA JAF0237964-) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
294874A3
HARNESS
Chassis, Replaced By 372227A1, 372248A1
1шт.
1
372227A1
HARNESS
Chassis, With Two Way Weather Pack Connector, Replaces 294874A3, Includes 2, 2A, Also Order 372248A1, Ref 1A, See Page(s) 4-39, 4-41
1шт.
1a
372248A1
HARNESS
Use With 372227A1, Not Illustrated
1шт.
2
L71879
DIODE ELEMENT,400V, 3A
1шт.
2a
245435C1
FUSE HOLDER
1шт.
3
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
2шт.
4
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
5
832-41306
NUT,M6 x 1, Cl 10
2шт.
6
235766A2
HANDLE
Right Hand, Horn, See Page(s) 4-59
1шт.
6a
233436A2
HANDLE
Right Hand, Horn, Turn Signal, See Page(s) 4-61
1шт.
6b
308598A1
HANDLE
Right Hand, Horn, Turn Signal, Ride Control, See Page(s) 4-63
1шт.
7
310838A1
HARNESS
Ride Control
1шт.
7a
308023A1
VALVE
Ride Control
1шт.
9
242306A1
SWITCH
Operator Presence, Not Illustrated, See Page(s) 9-85, 9-99
1шт.
12
227983A2
HANDLE
Left Hand, Brake, Two Speed, See Page(s) 4-65
1шт.
12a
233435A3
HANDLE
Left Hand, Brake, Two Speed, High Flow, See Page(s) 4-67
1шт.
13
107558C1
RESISTOR
25 ohm
1шт.
14
190-104
SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"
No. 10 NF x 1-1/2
1шт.
15
D122634
ISOLATOR,12.7mm OD x 14.1mm L
1шт.
16
A149800
FUSE,10 Amp
10 amp
2шт.
17
A149802
FUSE
20 amp
1шт.
17a
A149803
FUSE,25 Amp
25 amp
1шт.
18
D128310
RELAY
30 amp
3шт.
18a
314451A1
RELAY
40 amp, 12V
1шт.
19
840-1516
SCREW,Pan, M5 x 16mm, Cl 4.8
5шт.
20
825-5145
NUT,M5, Flg Ser
7шт.
21
840-1525
SCREW,Pan, M5 x 25mm, Cl 4.8
2шт.
22
245861C1
BAR
1шт.
23
303886A1
BREAKER
40 amp
2шт.
24
303884A1
BREAKER
15 amp
1шт.
26
247333A1
CAP
6шт.
27
515-23222
CLAMP,7/8", Insul, 3/8" Bolt
If equipped
2шт.
28
825-5146
SERRATED NUT,M6, Flg Ser
If equipped
2шт.
29
515-22270
CLAMP,1-1/16", Insul, 5/16" Bolt
1-1/16 ID
1шт.
31
A37179
CLIP
If Equipped
2шт.
Выбрано товаров: 36
