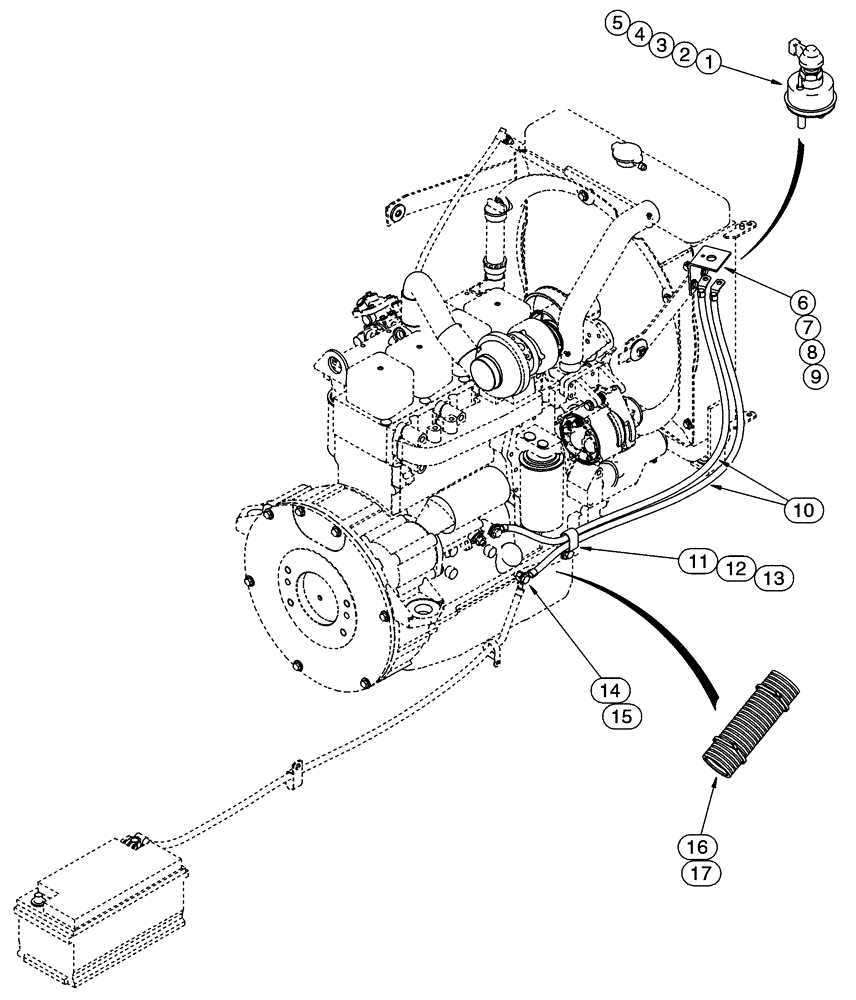

Запчасти Case IH 95XT (04-05) - DISCONNECT SWITCH (04) - ELECTRICAL SYSTEMS

L126256

SWITCH

Disconnect, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

3/8 NF, Nut, Brass

6шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

131-573

NUT,#10-32

4шт.

5

492-11010

LOCK WASHER,#10

4шт.

6

305068A1

SUPPORT

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

9

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

10

L126806

CABLE

Disconnect, Serial Range: Switch-Ground

2шт.

11

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

14

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

15

832-41312

NUT,M12 x 1.75, Cl 10

1шт.

16

308651A1

COVER

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.
