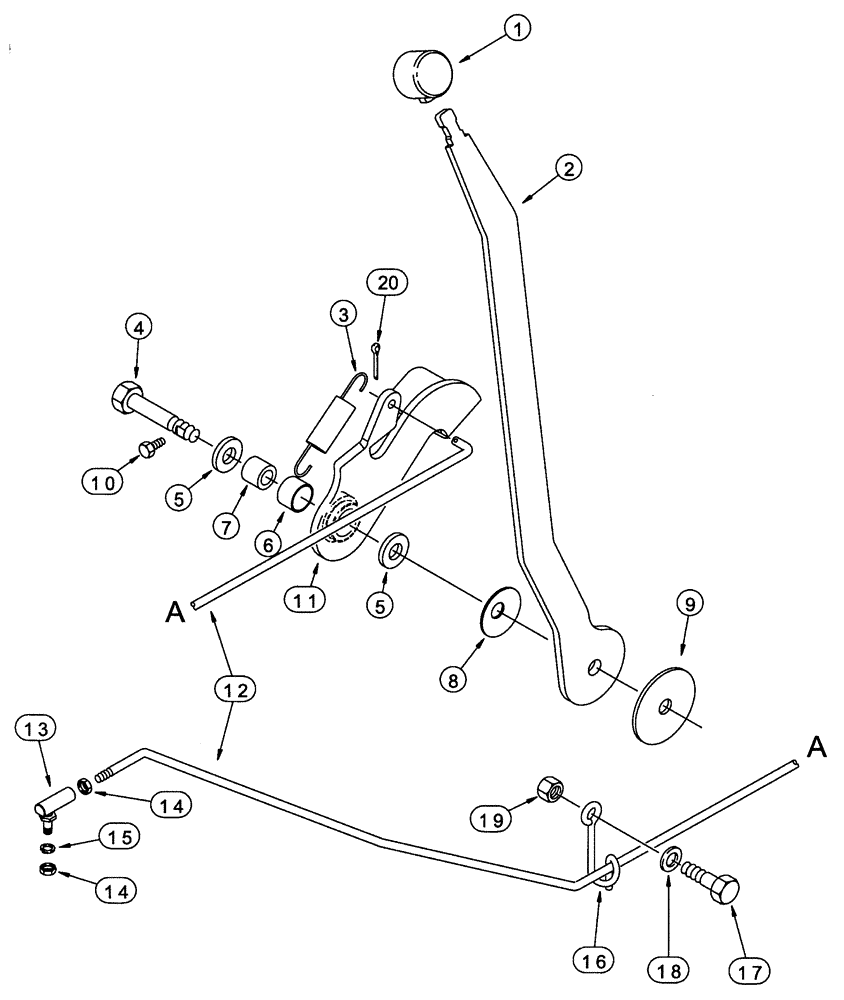

Запчасти Case IH 95XT (03-02) - THROTTLE CONTROLS (NORTH AMERICA -JAF0237963) (03) - FUEL SYSTEM

1

A177436

KNOB

1шт.

2

186904A1

CONTROL LEVER

Hand Operated

1шт.

3

D124939

SPRING

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

6

186905A1

BUSHING

1шт.

7

187035A2

SLEEVE

1шт.

8

R14771

WASHER

1шт.

9

1342374C1

DISC

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

11

186908A2

LEVER

Foot Operated

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

189838A3

THREADED ROD

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

1шт.

14

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

236217A1

CRADLE

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

20

432-48

COTTER PIN,1/16" x 1/2"

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
