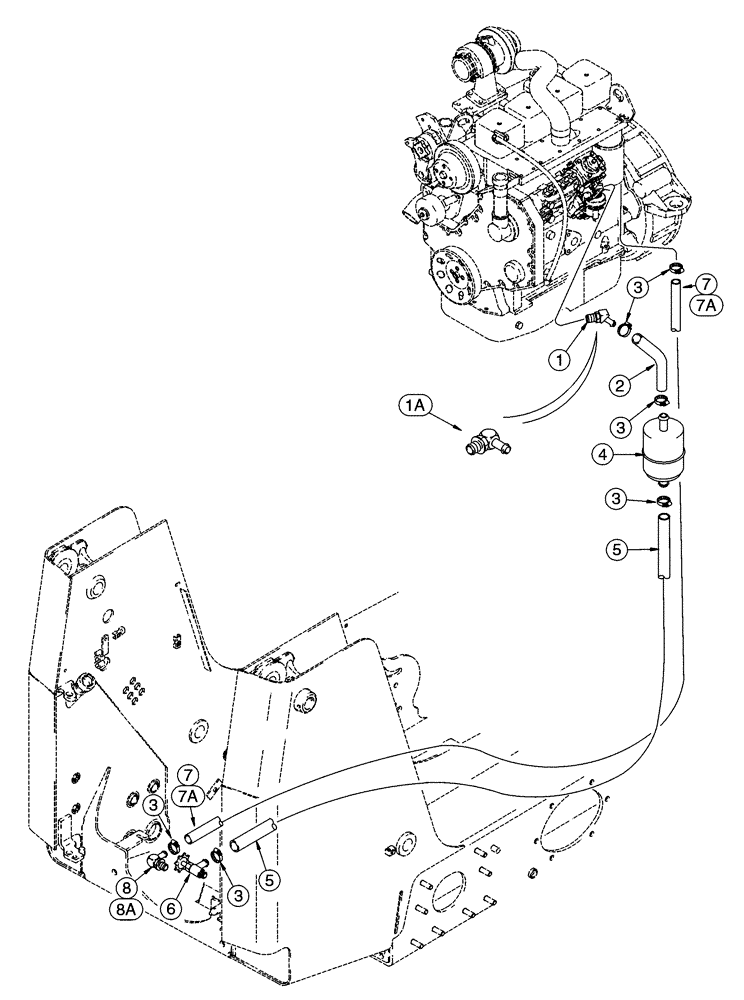

Запчасти Case IH 95XT (03-01) - FUEL LINES (03) - FUEL SYSTEM

1

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT, N.A. Only, - JAF0237963

1шт.

1

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 stem x 1/4 PT, Europe Only

1шт.

1a

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT, N.A. Only, JAF0237964 -

1шт.

2

D138967

FUEL HOSE

80 mm (3-1/4 in), Cut From A21561X

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

4

D139225

FILTER, FUEL

In-Line

1шт.

5

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in)

1шт.

6

H434805

VALVE

1шт.

7

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

N.A. Only, - JAF0237963, Cut from 427683C1

1шт.

7

S120213

HOSE,0.25" ID x 32.00", SAE 30R6 or SAE 100R3

Europe Only, Cut from 427683C1

1шт.

7a

H439168

HOSE,9.52 mm ID x 705.00 mm, SAE 30R6

680 mm (26-3/4 in), N.A. Only, JAF0237964 -

1шт.

8

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

N.A. Only, - JAF0237963

1шт.

8

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

Europe Only

1шт.

8a

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT, N.A. Only, JAF0237964 -

1шт.
