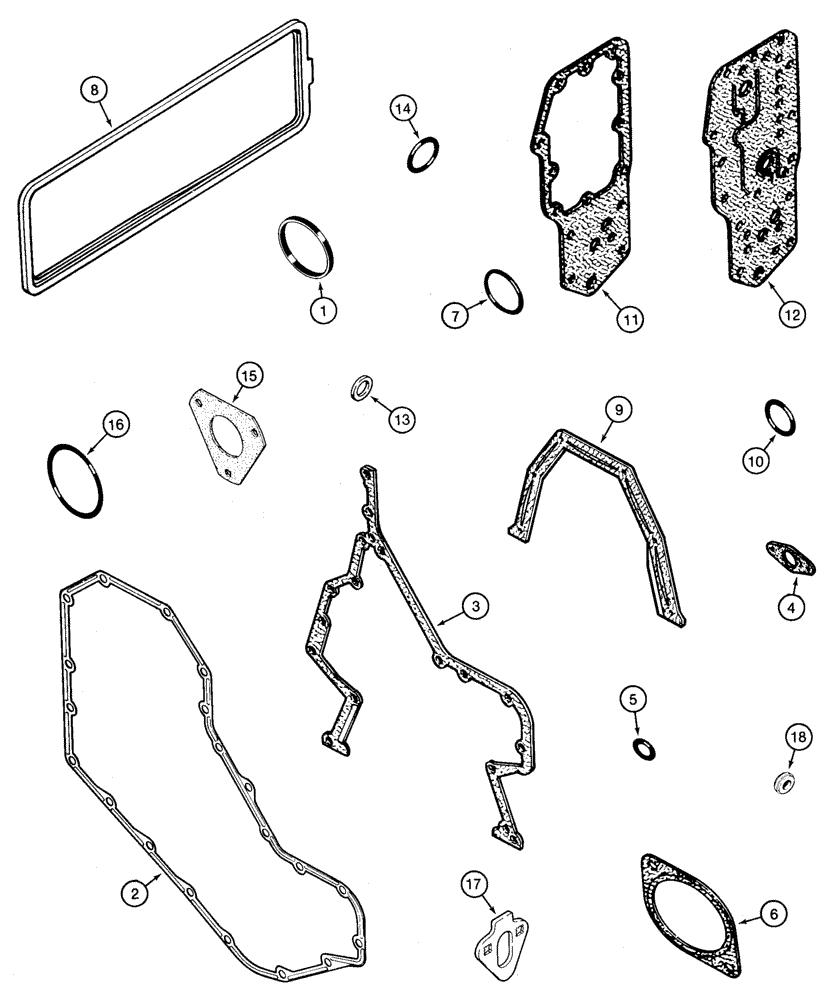

Запчасти Case IH 95XT (02-37) - GASKET KIT, CYLINDER BLOCK, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE

A77860

GASKET KIT

Consists Of 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-25

1шт.

2

J914385

GASKET,1.02mm Thk

See Page(s) 2-25

1шт.

3

J931351

GASKET

See Page(s) 2-25

1шт.

4

J905595

GASKET

1шт.

5

J913994

O-RING

See Page(s) 2-25

1шт.

6

J929751

GASKET

See Page(s) 2-25

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Page(s) 2-21

1шт.

8

J928831

GASKET

See Page(s) 2-73, N.A. Only

1шт.

8

J928831

GASKET

Not Used In This Application, Order J283767, See Page(s) 2-91, Europe Only

1шт.

9

J928493

GASKET

See Page(s) 2-115

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-73, 2-83, N.A. Only

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-91, Europe Only

1шт.

11

J942914

GASKET

Replaces J929791, See Page(s) 2-45

1шт.

12

J929792

GASKET,1.2mm Thk

See Page(s) 2-45

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-49

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, If Equipped

1шт.

15

J931607

GASKET

See Page(s) 3-27

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Page(s) 2-125

1шт.

17

J931348

GASKET

See Page(s) 3-13

1шт.

18

J928759

SEALING WASHER

See Page(s) 2-73, 2-83, N.A. Only

4шт.

18

J928759

SEALING WASHER

See Page(s) 2-91, Europe Only

4шт.
