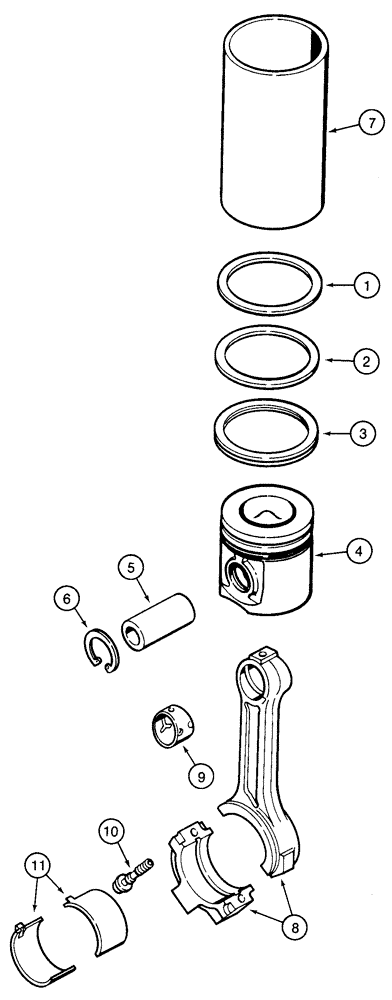

Запчасти Case IH 95XT (02-32) - PISTONS & CONNECTING RODS, 4T-390 ENGINE (NORTH AMERICA -JAF0237963 / EUROPE) (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

Standard, Consists Of A77727, 1 - 6

4шт.

A77727

PISTON RING SET

Standard, Consists Of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

2шт.

A77731

PISTON & RINGS KIT

Oversize 0,5 mm, Consists Of A77728, 1 - 6

4шт.

A77728

PISTON RING SET

Oversize 0,5 mm, Consists Of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0,5 mm

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

2шт.

A77732

PISTON

Oversize, 1,0 mm, Consists Of A77729, 1 - 6

4шт.

A77729

PISTON RING SET

Oversize, 1,0 mm, Consists Of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize, 1,0 mm

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

2шт.

7

J904166

SLEEVE

Use With A77730

1шт.

JR925232

ROD

Remanufactured, N.A. Only

1шт.

JC901569

CORE-ROD CONNECTING

CORE-CONNECTING ROD N.A. Only

1шт.

J925232

ROD, CONNECTING

Consists Of 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

95XT, Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J901085

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Oversize

4шт.

11

A77467

BEARING LINER

0,50 mm, Oversize

4шт.

11

A77468

BEARING SET

0,75 mm, Oversize

4шт.

11

A77469

BEARING SET

1,0 mm, Oversize

4шт.
